VP-AC2M10P-TS34IRB1 2MP, 10X Array IR Night Vision Outdoor PTZ Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

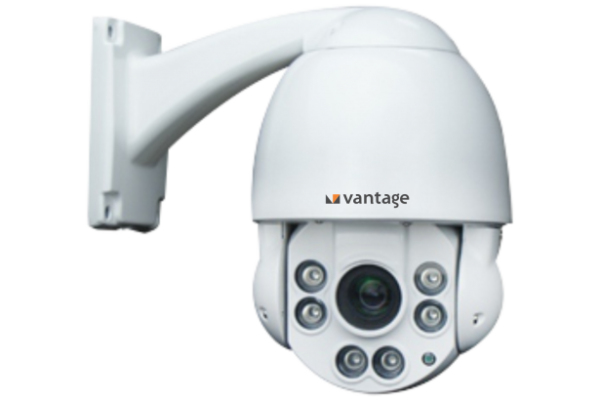

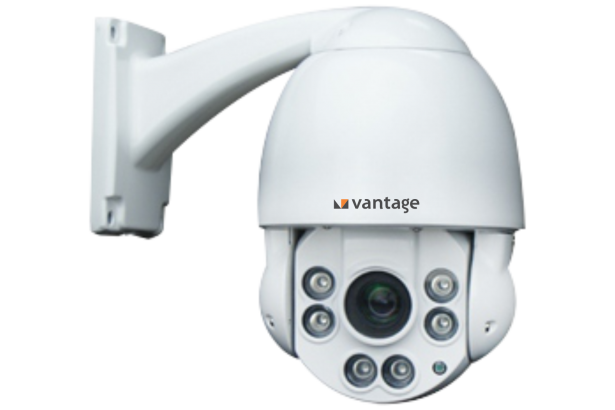

VP-AC2M10P-TS34IRB1 2MP, 10X Array IR Night Vision Outdoor PTZ Camera

  • 2 Megapixel Full HD 1080p Resolution
  • 1/3″ Sony Exmor Progressive Scan Sensor
  • Powerful 10 x Optical zoom
  • 360° endless panning
  • Inbuilt Array IR up to 60 mtrs IR range
  • Inbuilt 3D DNR & BLC functions
  • Supports presets/pattern/patrol/pan scan
  • IP66 Weather proof Outdoor Enclosure with Double Layer
    Metal Body Construction
Category:
Description
Parameter Specifications
Camera
Image  sensor 1/3″ Sony Exmor Progressive Scan  Sensor
Effective Pixels 1920 (H) × 1080(V)
Frequency 50 Hz (PAL) / 60 Hz (NTSC)
Horizontal  Resolution 2 Megapixel
Minimum Illumination Color : 0.01Lux @ F1.2, B&W: 0.0015 lux @ F1.4,0 Lux at IR on
Signal to Noise > 62 dB
Gain Control Auto / Manual  / Off
White Balance Auto/  Manual  / Indoor/ Outdoor
DNR Inbuilt  3D DNR (Digital Noise Reduction) circuit
Auto Iris Auto/  Manual
Gamma Correction 0.45
Sync System Internal
Lens
Lens  Type 5 to 50mm (10x Optical  Zoom)
Angle of View H 51.8°(W )   5.86°(T) ; V39.1°(W)   4.4°(T)
Focus Auto Focus/ Manual  Focus
Zoom 10x Optical  Zoom
Zoom Speed Approx 3s (Optical Wide-Tele)
Day/Night
Functionality
Day & Night True Day & Night  with ICR
IR Cut High performance Mechanical IR Cut Filter with auto  switch
IR Source Inbuilt  6 x high  performance High Power Array IR LEDs
IR Range Up to 60 Mtrs
IR irradiation angle Automatically adjusted, depending on the zoom ratio
IR Life 40000 operation hours
Pan-Tilt
Pan  Angle 360°  endless pan  rotation
Tilt Angle 0° to 90°  (Auto Flip)
Pan  Speed 0.01°   ~ 350°/s (Manual), 350°/s (Preset)
Tilt Speed 0.1°  ~ 120°/s (Manual), 350°/s (Preset)
Presets 220
Preset Accuracy ±0.1°
Patrol 4 Patrols, up to 16 presets per patrol
Tour Pattern 4 Tour patterns
Power-off Memory Supported
PTZ position display Supported
Operational Features
OSD Menu Supported
Camera ID On/Off
Motion Detection Supported, 8 zone  configuration
BLC Auto
Video Adjustment Supported
WDR D-WDR
Electronic Shutter Speed 1/50 ~ 1/10000s
Protocols PELCO-P, PELCO-D,  Multi protocol  support
Baud  Rate 2400/4800/9600bps
Interface
Power Input Standard DC Jack / 2Pin Wired Terminal
Data Communication RS-485
Video Output 1 BNC TVI Video Output
Electrical
Power Requirement
(± 10%)		 DC 12V (± 10%)
Power Consumption Max 22 W with IR on
Environmental
Enclosure IP 66  Weather proof  outdoor enclosure
Protection TVS 4,000V lightning protection, surge protection and  voltage transient protection
Mounting bracket External  Mounting bracket included
Operating Temperature -40°C to +65°C
Operating Humidity 95%  or less  (non-condensing)
Mechanical
Color White
Certifications
Certifications  CE, FCC, RoHS
