Vantage Products

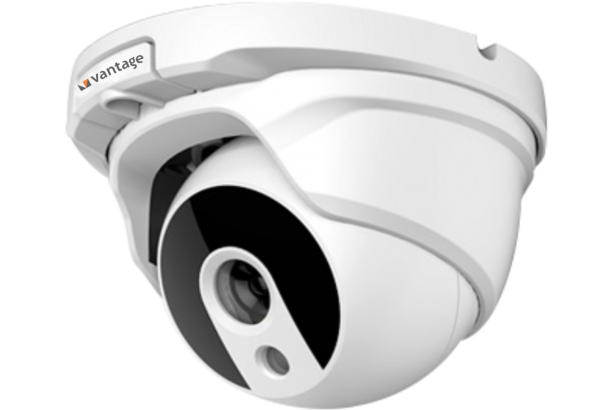

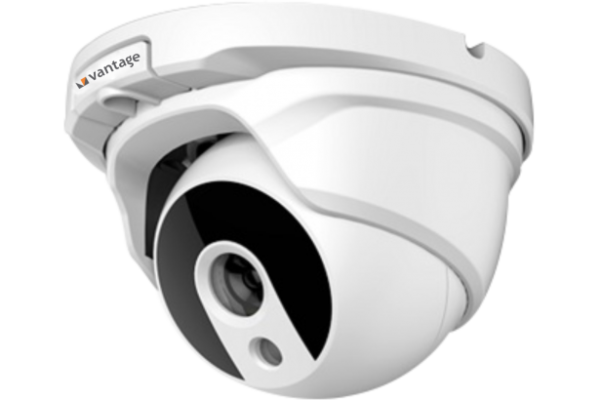

VP-AC2MA2D-1V35F3K1 2MP Array IR Full HD Camera

  • 2 Megapixel Full HD 1080p Resolution
  • 1/3” Progressive Scan Sensor
  • High performance SMART IR LEDs with intensity control
  • High performance IR Cut mechanical filter for True Day & Night vision
  • Inbuilt IR LEDs for 20 mtr IR range
  • 3 megapixel 3.6 mm IR corrected lens
  • Auto White Balance
  • Premium Indoor Dome enclosure
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) × 1080 (V)
Frequency 50 Hz (PAL) / 60 Hz (NTSC)
Horizontal Resolution 2 Megapixel
Minimum Illumination Color : 0.01Lux @ F1.2, 0.015 lux @ F1.4, B&W: 0 Lux at IR on
Signal to Noise > 62 dB
Gain Control Auto
White Balance Auto (2000K to 10000K)
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Auto Iris DC Drive
Gamma Correction 0.45
Sync System Internal
Lens
Lens Type 3 Megapixel 3.6mm IR corrected lens
Lens Mount ɸ 14
Focus Fixed
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut High performance Mechanical IR Cut Filter with auto switch
IR Source High performance 2 nos. Smart Array IR LEDs with intensity control
IR Range Up to 20 Mtrs
IR Life 40000 Operation Hours
Interface
Video Output 1 Analog AHD Video output
Power Input Standard DC Jack
Electrical
Power Requirement (± 10%) 12 VDC ± 10%
Power Consumption Max 5 W with IR on
Environmental
Enclosure Vandal Resistant Metal Dome enclosure
Operating Temperature -10°C to + 55°C
Operating Humidity 95% or less (non-condensing)
Impact Protection  IEC60068-2-75Eh, 50J; EN50102, up to Ik10
Mechanical
Color White
Certifications
Certifications UL, CE, FCC, RoHS
