VP-BS300FP-CZ1 Standalone Fingerprint Based Access Control System – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

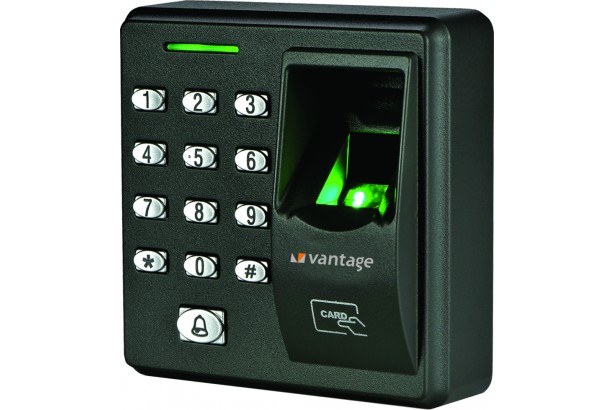

VP-BS300FP-CZ1 Standalone Fingerprint Based Access Control System

  • Scratch Proof optical sensor
  • High resolution 600 dpi optical sensing
  •  360° verification angle
  • High performance sensing with < 1s identification time
  • Inbuilt access control functionality
  • Fingerprint capacity of 500 users
  • Password capacity of 8 groups
Categories: ,
Description
Parameter Specifications
Hardware & Platform
CPU 32 bit Microprocessor
Memory 64M RAM, 256M Flash
Sensor Scratch proof High performance optical sensor
DPI rating 600 dpi resolution
Sensor area 16mm x 14mm
OS Embedded Linux OS
Operation mode Offline
Keypad Numeric backlit keypad
Indicators Dual color LEDs
Operation Capacity
Fingerprint templates 500 users
Card IDs 500 users
Verification
Verification angle  360° verification angle
FAR < 0.0001%
FRR < 1%
Verification time < 1s
Algorithm Advanced Smart finger algorithm V 15.0
Authentication modes Fingerprint only/ Fingerprint + PIN/ Fingerprint + EM Card
Operational Features
Real time Clock Supported
Card Reader Inbuilt 125 Khz EM card reader (Mifare reader optional)
Languages Multi-language support
Card Reader Range 3-5 cms read range
Duress Alarm Sensor relay with NO-NC support
Door bell function Supported
Access control support Door Relay Access control function with NO-NC support
Exit Switch support Exit switch NO type support
Environmental
Operation temperature 0°-50°C
Operating Humidity upto 90% (non condensing)
Mechanical
Construction material ABS plastic
Dimensions 88*88*33.6 mm (L*W*H)
Certifications CE, FCC, RoHS
