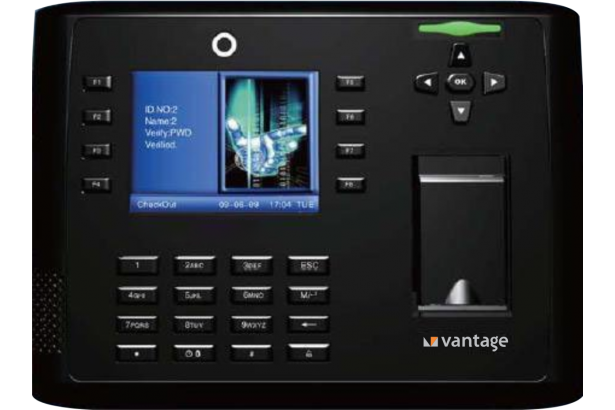

VP-BS950FP-CBAZ1 Fingerprint TA System With Camera Access Control And Battery Backup

  • Scratch Proof optical sensor
  • High resolution 600 dpi optical sensing
  •  360° verification angle
  • In-built 1.3mp HD camera for snapshot
  • In-built battery for backup
  • 3.5″ Color LCD screen
  • TCP-IP network connectivity
  • USB connectivity for communication and data backup
  • High performance sensing with < 1s identification time
  • Inbuilt access control functionality
  • Wifi connectivity support (optional)
  • GPRS connectivity support
Categories: ,
Description
Parameter Specifications
Hardware & Platform
CPU 32 bit Microprocessor
Memory 64M RAM, 256M Flash
Sensor Scratch proof High performance optical sensor
DPI rating 600 dpi resolution
Sensor area 16mm x 14mm
OS Embedded Linux OS
Operation mode Offline
Display 3.5″ Color LCD screen
Keypad Alpha-numeric backlit keypad
Indicators Audio visual indication , with dual color LEDs
Operation Capacity
Fingerprint templates 8000 users
Card IDs 10000 users
Transaction capacity 200000 logs
Verification
Verification angle  360° verification angle
FAR < 0.0001%
FRR < 1%
Verification time < 1s
Algorithm Advanced Smart finger algorithm V 15.0
Authentication modes Fingerprint only/ Fingerprint + PIN/ Fingerprint + EM Card
Operational Features
 Backup Battery Inbuilt battery backup for upto 6 hours standby time
Voice notification Supported
Real time Clock Supported
Card Reader Inbuilt 125 Khz EM card reader (Mifare reader optional)
Languages Multi-language support
Card Reader Range 3-5 cms read range
Door bell function Supported
Access control support Door Relay Access control function with NO-NC support
Exit Switch support Exit switch NO type support
Access Time Zones 50 Access Time Zones
Function keys 6 number user defined function keys
Camera Inbuilt 1.3MP camera with snapshot feature
Communication
Ethernet TCP/IP 10/100 ethernet interface
USB USB 2.0 for communication and data backup
Wifi Wifi connectivity optional through Wifi Module
GPRS  GPRS connectivity through GPRS  Module
RS 485 Supported
Wiegand Wiegand in and out
Power
Power requirement DC 12V, 3A
Environmental
Operation temperature 0° to 50°C
Operating Humidity upto 90% (non condensing)
Mechanical
Construction material ABS plastic
Dimensions 225.2mm * 166mm * 46.3mm (Length*Width*Thickness)
Weight 2.05Kg
Certifications CE, FCC, RoHS
