VP-DV6404-4SX1 4 Channel HD TVI DVR – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

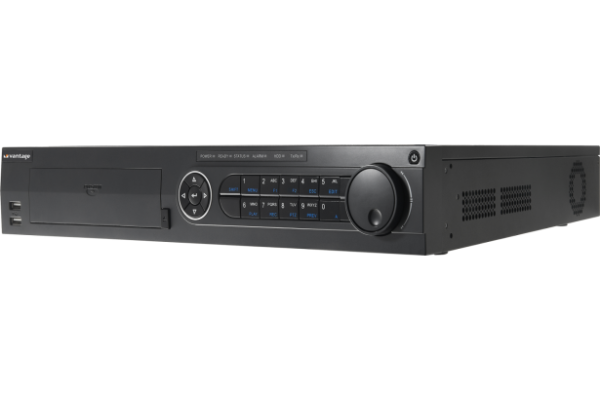

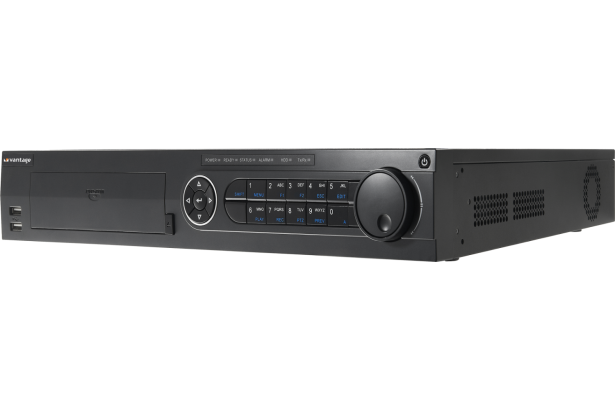

VP-DV6404-4SX1 4 Channel HD TVI DVR

  • High performance Triple Platform HD TVI DVR
  • HD TVI, Analog and IP cameras supported
  • H.264 video Dual Stream compression
  • Max 1080P (1920X1080) resolution @12fp s supported
  • Gigabit (10/100/1000) network support
  • HDMI / VGA simultaneous video output
  • Supports remote monitoring on Mobile Client (Android,
    IOS), IE and through CMS
  • Inbuilt Motion Recording supported
Category:
Description
Parameter Specifications
System
Operating System Embedded Linux Operating System
Multiplex Operations Simultaneous multi-channel real-time recording, playback,
network operation, USB backup
User interface Support 16-bit true color graphical menu interface and mouse
operation
Interface
Video Input 4-ch Composite video 1.0 Vp-p,  75 ohm
Audio Input 4-ch Line in RCA input (1 kΩ)
HDMI/VGA Video Output 1-ch, Resolution: 1920×1080P/60Hz, 1600×1200/60Hz,
1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Video Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576,
NTSC: 704 × 480
Two-way Audio 1-ch, RCA (2.0Vp-p, 1 kΩ)
IP Video Input 1-ch
Communication RS 485 ( for PTZ and Keyboard )
Network 1 x Gigabit (10/100/1000) ethernet port (Rj45)
USB 2 x 2.0 USB interface (for backup, firmware upgrade and mouse interface)
IR Remote IR interface for remote control
Compression
Video compression H.264 dual stream compression
Audio compression G.711
Resolution & Frame Rate
Sampling Rate 8 Khz
Recording 4 ch 1080p @ 12 fps ,4 ch 720p @ 25 fps
Playback 4 ch 1080p @ 12 fps ,4 ch 720p @ 25 fps
Frame Rate Max 30 fps supported for NTSC, Max 25 fps for PAL
Network & Remote Monitoring
DDNS Supported; Dynamic and Static IP support
Protocols Supported HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP,
DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
CMS Full function CMS ( Central monitoring software)
User Access 10 users online with professional authority management
Mobile Client Application Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Features
Simultaneous Playback Max 4 channel Simultaneous Playback
Analog Mode Supported (4 x 1080p HD TVI/ 4 x 960H)
NVR Mode Supported  (1 x 720P/ 960P/ 1080P)
Multi Screen Display 1 / 4 / Sequence
Security Password protection, user management
Playback Function Fast forward / backward, Slow forward / backward, Step
forward / backward
Search Mode Time/Date, Alarm, Motion Detection & Exact Search (accurate
to second)
Alarm Notifications FTP, Email notification supported
Dual Stream Supported
Recording & Storage
Recording Mode Manual/Alarm/Motion Detection/Continuous
Storage 4 SATA port up to 6TB
Overwrite  Mode Continuous
General
Power Supply DC 12V
Power Consumption <30W (Hard disk not included)
Operating temperature -10°C to + 55°C
Working Humidity 95%  or less  (non condensing)
Chassis 19-inch rack-mounted 1.5U chassis
Mechanical
Color Black
Dimensions 445 × 390 × 70 mm
Weight 5Kg
Certifications
Certifications  CE, FCC, RoHS
