VP-NC1493B-F3IR2T1 IR Night Vision Fixed Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

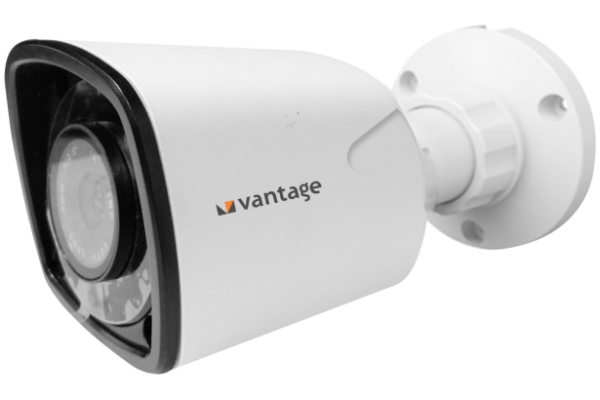

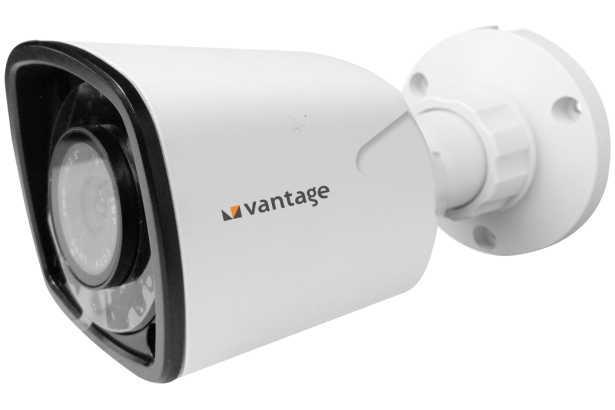

VP-NC1493B-F3IR2T1 IR Night Vision Fixed Camera

  • Full HD 3MP (2048 x 1536) resolution
  • 1/3″ Progressive Scan Sensor
  • Inbuilt Smart High efficiency Array IR LEDs with intensity control
  • High performance IR Cut mechanical filter for True Day
    & Night vision
  • Inbuilt DWDR, 3D DNR & BLC functions
  • Support triple streams
  • Support P2P
  • IP66 Weather proof outdoor enclosure
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 2048 (H) × 1536 (V)
Minimum Illumination Color : 0.01Lux @ F1.2, 0.015 lux @ F1.4, B&W: 0 Lux at IR on
Electronic Shutter Speed 1/25s (1/30s) ~ 1/100,000s
Gain Control  Auto
White Balance Auto
Signal to Noise > 62 dB
Auto Iris DC Drive
Lens
Lens Type 3 Megapixel IR corrected 3.6mm Fixed Lens
Lens Mount M12
Focus Fixed
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut High performance Mechanical IR Cut Filter with auto switch
IR Source Inbuilt Smart High efficiency Array IR LEDs with intensity control
IR Range 30 Mtr.
IR Life 40000 Operation Hours
Compression
Video compression  H.264 / MJPEG
H.264 codec profile  Main profile
Video Bit Rate 128 Kbps ~ 6 Mbps
Resolution and Frame Rate
Max. Resolution 2048 x 1536
Frame rate 50Hz: 25fps (2048 x 1536), 25fps (1920 x 1080),25fps (1280 x720), 25fps (704 x 576),25fps (352 x 288)
60Hz: 30fps (2048 x 1536), 30fps (1920 x 1080),30fps (1280 x720) 30 fps (704 x 576), 30 fps (352 x 288)
Operational Features
Wide Dynamic Range (WDR) Digital WDR
Backlight compensation Yes, zone configurable
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Codec streaming capability Triple streaming
Image settings Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Security User Authentication
Alarm trigger  motion detection, tampering alarm
Network & Remote Monitoring
Protocols TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS,SMTP, FTP
System compatibility ONVIF
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Network storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Electrical
Power Requirement (± 10%) 12 VDC ± 10% , PoE (802.3af)
Power Consumption Max 5W
Environmental
Enclosure IP 66 Weather proof outdoor enclosure
Mounting bracket Integrated mounting bracket with cable management
Operating Temperature -30°C to + 60°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color White
Dimensions 64X183 mm
Weight 337g
Certifications
Certifications UL, CE, FCC, RoHS
