VP-NC7330S-F25THX1 Low Range Thermal Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

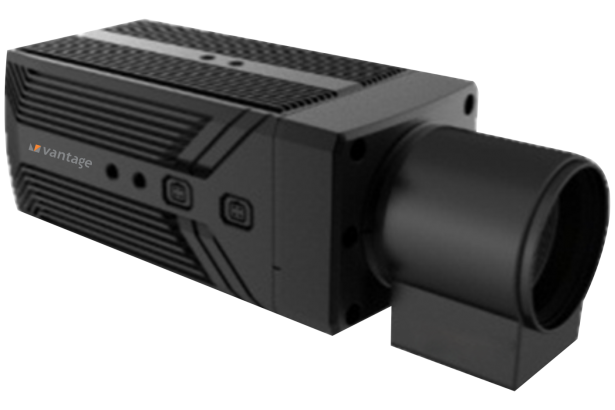

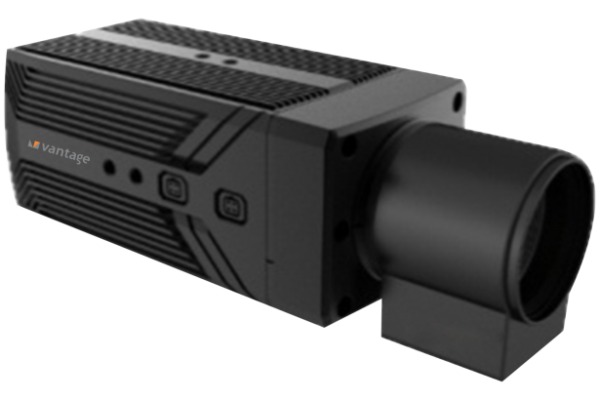

VP-NC7330S-F25THX1 Low Range Thermal Camera

  • Vanadium Oxide Uncooled Focal Plane Detector
  • Advanced Passive Infrared thermal Technology
  • Dual Stream Supported
  • 2300 mtr. Maximum Detection Range
  • 2 Way Audio
  • Support Onboard SD Card up to 32GB
Category:
Description
Parameter Specifications
Camera
Image Sensor Vanadium Oxide Uncooled Focal Plane Detector
Signal System PAL/NTSC
Effective Pixels 384 (H) × 288 (V)
Pixel Element Size 17mm
Response Waveband 8 ~ 14mm
NETD <80mk @25°C, F#=1.0)
Spatial Resolution 0.68 0.68
Lens (Focus) 25mm
Detection Range (Vehicle) 2300m
Detection Range (Human) 1200m
Identification Range (Vehicle) 750m
Identification Range (Human) 400m
Field Angle 21.7°x16.4°
F Value 1
Compression
Video compression H.264 / MJPEG
Video Bit Rate 32 Kbps ~ 16 Mbps
Audio compression G.711
Image Size 384 x 288
Video Output PAL
Frame Rate 25fps (38 4 x 288)
Image Setting Brightness and contrast are adjustable via software or web browser
Focus Electric
Color Palette Black, white heat, Pseudo color
Functions
Storage Support SD / SDHC (32G), NAS (ISCI Optional)
Intelligent Analysis Line crossing detection, region entrance, region exiting, intrusion detection
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP(SNMP, HTTPS, SIP, FTP, SRTP, 802, 1X, Ipv6 optional)
General One Key Recovery, Anti-flicker, Dual Stream, Heartbeat, Watermark, Password Protection
Interface
Audio Input 1-ch 3.5 mm audio interface, MIC IN/Line IN
Audio Output 1-ch 3.5 mm audio interface (Line level, 600 Ω)
Communication Interface  1 RJ45 10M/100M Self-adaptive Ethernet interface; 1 RS-485
Alarm Input / Output 1/1
Video Output 1 ch BNC
Installation interface Standard close nipple for camera (1/4 UNC thread)
General
Power Requirement DC12V±10%
Power Consumption 9W MAX
Operating Temperature  -30°C to + 60°C
Operating Humidity 95% or less (non-condensing)
Weight 1kg
Certifications
Certifications UL, CE, FCC, RoHS
