VP-NV5932-R16SX1 32 Channel NVR With RAID Support – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

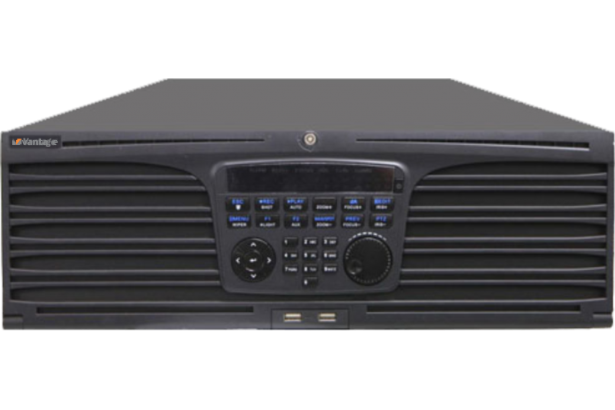

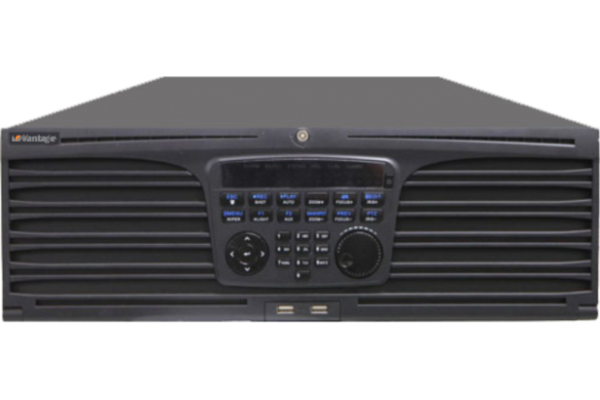

VP-NV5932-R16SX1 32 Channel NVR With RAID Support

  • ONVIF Supported
  • Up to 5 Megapixels Resolution Display and Recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • RAID function with RAID 0, 1, 5, 10 Supported
  • Supported eSATA interface for backup
  • Dual Gigabit (10/100/1000) network port for dual IP, load balancing, network redundancy
  • Supports Intelligent 3D positioning for IP PTZ camera
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
Category:
Description
Parameter Specifications
System
Operating System Embedded Linux Operating System
Multiplex Operations Simultaneous Multi-channel real-time recording, playback, network operation, USB backup
User interface Support 16-bit true color graphical menu interface and mouse operation
Bandwidth
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth  160 Mbps
Remote connections 128
Interface
IP Video Input 32-ch
Two way Audio Input 1-ch, RCA (Linear, 1kΩ)
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω) Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
VGA Video Output 1-ch, Resolution: 1920×1080P/60Hz, 1600×1200/60Hz, 1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz
HDMI Video Output 1-ch, Resolution: 1920×1080P/60Hz, 1600×1200/60Hz, 1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz
Audio Output 1-ch, RCA (Linear, 1kΩ)
Alarm Input 16 CH
Alarm Output 4 CH
Network 2 x Gigabit (10/100/1000) ethernet port (RJ45),dual IP, load balancing, network redundancy
USB USB ports – 2 x USB ports for Mouse and backup + 1 x USB 3.0 port
E-Sata 1 x eSATA inteface
Resolution & Frame Rate
Recording Resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF
Frame Rate Main stream: 25 fps (P) / 30 fps (N); Sub stream: 25 fps (P) / 30 fps (N)
Playback Resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF
Max playback capability Max 16 ch playback
Network & Remote Monitoring
DDNS Supported; Dynamic and Static IP support
CMS Full function CMS ( Central monitoring software)
Mobile Client Application Supports android and iOS APP for Smart phone and  tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Features
Security Password protection, user management
Playback Function Fast forward / backward
Search Mode  Time/Date, Alarm, Motion Detection & Exact Search (accurate to second)
Alarm Notifications FTP, Email notification supported
Recording & Storage
Recording Mode Manual/Motion Detection/Continuous
Storage 16 x SATA port up to 4TB Each
Overwrite Mode Supported
Disk Array
Array type RAID0, RAID1, RAID5, RAID10
Number of array 4
Number of virtual disk 8
General
Power Supply 100~240 VAC
Power Consumption <45W (Hard disk not included)
Operating temperature  -10°C to + 55°C
Working Humidity 95% or less (non condensing)
Chassis 19-inch rack mountable 3U chassis
Dimensions 445 × 496 × 146 mm (17.5″ × 19.5″ × 5.7″)
Weight ≤12.5 Kg (without hard disk)
Certifications
Certifications UL, CE, FCC, RoHS
