VP-NV6964-8SX1 64 Channel NVR with RAID Support – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

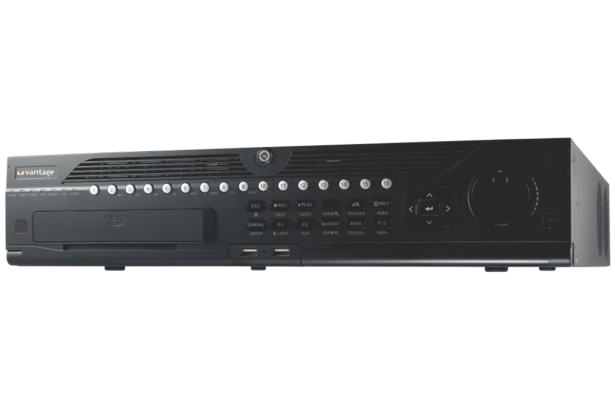

VP-NV6964-8SX1 64 Channel NVR with RAID Support

  • ONVIF Supported
  • Up to 12 Megapixels Resolution Display and Recording
  • HDMI and VGA output at up to 4K resolution
  • Full function CMS (Central monitoring software) supported
  • Supported eSATA inteface for backup
  • Dual Gigabit (10/100/1000) network port for dual IP, load balancing,
    network redundancy
  • Supports Intelligent 3D positioning for IP PTZ camera
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
  • RAID function with RAID 0, 1, 5, 10 Supported
Category:
Description
Parameter Specifications
System
Operating System Embedded Linux Operating System
Multiplex Operations Simultaneous multi-channel real-time recording, playback, network
operation, USB backup
User interface Support 16-bit  true  color graphical menu interface and  mouse operation
Bandwidth
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 256 Mbps
Remote connections 128
Interface
IP Video Input 64-ch
Two way Audio Input 1-ch, RCA (Linear,  1kΩ)
VGA Video Output 1 1-ch, Resolution: 2K (2560 X 1440) /60Hz, 1920×1080P/60Hz, 1600×1200/60Hz,
1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI Video Output 1 Resolution: 4K (3840X2160) /60Hz, 2K (2560 X 1440)/60Hz, 1920×1080P/60Hz,
1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI / VGA Output 2 Resolution: 1920×1080P/60Hz,1600×1200/60Hz,  1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz
Audio Output 2-ch, RCA (Linear,  1kΩ)
Alarm Input 16
Alarm Output 4
Network 2 x Gigabit  (10/100/1000) ethernet port (RJ45),dual IP, load balancing, network  redundancy
USB USB ports  – 2 x USB ports  for Mouse  and  backup + 1 x USB 3.0 port
Serial  Interface RS-232, RS- 485, Keyboard
E-Sata 1 x eSATA inteface
Resolution & Frame Rate
Recording Resolution 12MP / 8MP/  6MP/  5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF
Frame Rate Main stream: 25 fps (P) / 30 fps (N); Sub  stream: 25 fps (P) / 30 fps (N)
Playback  Resolution 12MP / 8MP/  6MP/  5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF
Max playback capability Max 16 ch playback
Network & Remote Monitoring
DDNS Supported; Dynamic  and  Static  IP support
CMS Full function CMS (Central  Monitoring Software)
Mobile Client
Application		 Supports android and  iOS APP for Smart phone and  tablets
Bandwidth control VBR (Automatic)  and  CBR (Manual) supported
Features
Security Password protection, user  management
Playback  Function Fast forward  / backward
Search Mode Time/Date, Alarm,  Motion Detection & Exact Search (accurate to second)
Alarm Noti?cations FTP, Email noti?cation supported
Recording & Storage
Recording Mode Manual/Motion Detection/Continuous
Storage 8 x SATA port up to 6TB Each/4 SATA HDDs + 1 DVD RW
Overwrite  Mode Supported
Disk Array
Array type RAID0, RAID1, RAID5, RAID10
Number of array 4
Number of virtual disk 8
General
Power Supply 100~240 VAC
Power Consumption <45W  (Hard disk not included)
Operating temperature -10°C to + 55°C
Working Humidity 95%  or less  (non condensing)
Chassis 19-inch rack mountable 2U chassis
Dimensions 445 × 470 × 90 mm
Weight ?  ?10 Kg (without  hard disk)
Certifications
Certifications UL, CE, FCC, RoHS
