VV-AC82103B-3PIRB1 2MP IR Night Vision Motorized Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

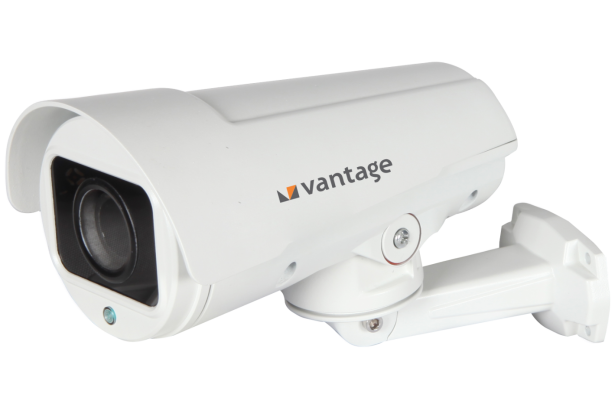

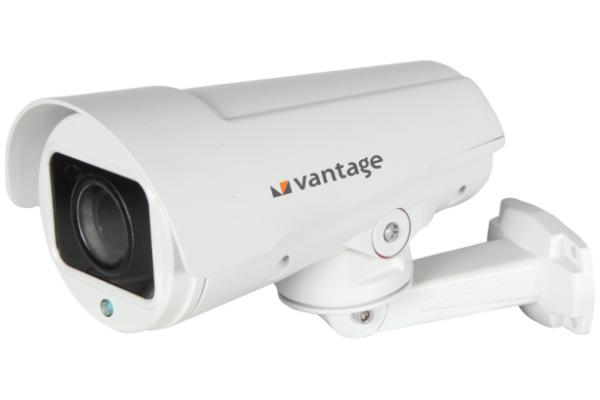

VV-AC82103B-3PIRB1 2MP IR Night Vision Motorized Camera

  • Full High Definition 2MP (1920 x 1080) resolution
  • 1/3″ Progressive Scan Sensor
  • 10x Optical zoom
  • 160° pan angle supported
  • Inbuilt IR LEDs for 40 mtrs IR range
  • Supports presets/patrol/pan scan
  • Inbuilt DWDR, 3D DNR & BLC functions
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) × 1080 (V)
Minimum Illumination Color: 0.01Lux@( F1.4, AGC ON); B/W: 0.0015Lux@( F1.4, AGC ON); 0 Lux with IR
Electronic Shutter Speed 1/1~ 1/10,000s
Signal to Noise > 62 dB
Gain Control Auto / Manual
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Auto Iris Auto / Manual
Lens
Lens Type 5.1 ~ 51mm, 10x Optical
Angle of View 47  ~  5.3 degree (Wide-Tele)
Focus Auto Focus
Zoom 10x Optical Zoom
Zoom Speed Approx.3s (Optical Wide-Tele)
Aperture Range F1.4 ~ F3.5
Compression
Video compression  H.264 / MJPEG
H.264 codec profile  Main profile
Video Bit Rate  32 Kbps ~ 16 Mbps
Resolution and Frame Rate
Max. Resolution 1920 x 1080
Frame rate 50Hz: 25 fps (1920×1080), 25 fps (1280×720);
60Hz: 30 fps (1920×1080), 30 fps (1280×720)
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut  High performance Mechanical IR Cut Filter with auto switch
IR Source Inbuilt High performance IR LEDs
IR Range Up to 40 Mtrs
IR Irradiation Angle Automatically adjusted, depending on the zoom ratio
IR Life 40000 operation hours
Pan-Tilt
Pan Angle 160°
Pan Speed  0.1° ~ 45°/s
Presets 220
Preset Accuracy  ± 0.1°
Patrol 3 patrols, up to 16 presets per patrol
Tour Pattern 4 Tour patterns
Power-off Memory Supported
PTZ position display  Supported
Operational Features
OSD Menu Supported
Camera ID On/Off
Privacy Masking Yes, Mutiple Zone Supported
Digital Zoom 16X
Motion Detection Supported
Backlight Compensation Supported
Video Adjustment Supported
WDR Supported
Protocols PELCO-P, PELCO-D, Multi protocol support
Baud Rate 2400/4800/9600bps
DNR  Inbuilt 3D DNR (Digital Noise Reduction) circuit
Interface
Video Output 1x BNC AHD Video Output
Power Input Standard DC Jack
Communication mode RS-485
Electrical
Power Requirement (± 10%) 12VDC/2A
Power Consumption MAX. 15W
Environmental
Enclosure IP66 weather proof outdoor enclosure
Mounting bracket External Mounting bracket included
Operating Temperature -40°C to +65°C
Operating Humidity 90% or less (non-condensing)
Mechanical
Color White
Dimension 113 x 95 mm
Certifications
Certifications CE, FCC, RoHS
