VV-BS600FP-CAU1 Fingerprint Based Access Control System – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

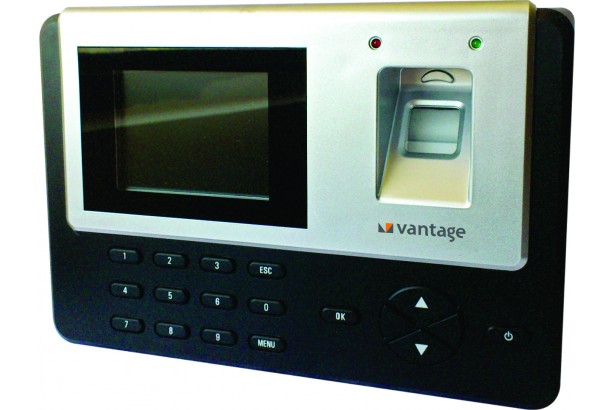

VV-BS600FP-CAU1 Fingerprint Based Access Control System

  • Scratch Proof optical sensor
  • High resolution 600 dpi optical sensing
  •  360° verification angle
  • 3.5″ Color LCD screen
  • TCP-IP network connectivity
  • USB connectivity for communication and data backup
  • High performance sensing with < 1s identification time
  • Inbuilt access control functionality
Categories: ,
Description
Parameter Specifications
Hardware & Platform
CPU 32 bit Microprocessor
Memory 64M RAM, 256M Flash
Sensor Scratch proof High performance optical sensor
DPI rating 600 dpi resolution
Sensor area 16mm x 14mm
OS Embedded Linux OS
Operation mode Offline
Display 3.5″ Color LCD screen
Keypad Numeric backlit keypad
Indicators Audio visual indication , with dual color LEDs
Operation Capacity
Fingerprint templates 1000 users
Card IDs 1000 users
Transaction capacity 100000 logs
Verification
Verification angle  360° verification angle
FAR < 0.0001%
FRR < 1%
Verification time < 1s
Algorithm Advanced Smart finger algorithm V 15.0
Verification mode 1:1; 1:N
Authentication modes Fingerprint only/ Fingerprint + PIN/ Fingerprint + EM Card
Operational Features
Voice notification Supported
Real time Clock Supported
Card Reader Inbuilt 125 Khz EM card reader (Mifare reader optional)
Languages Multi-language support
Card Reader Range 3-5 cms read range
Access control support Door Relay Access control function with NO-NC support
Exit Switch support Exit switch NO type support
Access Time Zones 50 Access Time Zones
Communication
Ethernet TCP/IP 10/100 ethernet interface
USB USB 2.0 for communication and data backup
RS 485 Supported
Wiegand Wiegand out
Power
Power requirement DC 9V, 1A
Environmental
Operation temperature 0°-50°C
Operating Humidity upto 90% (non condensing)
Mechanical
Construction material ABS plastic
Dimensions 185mm x 128mm x 50mm
Certifications CE, FCC, RoHS
