Vantage Products

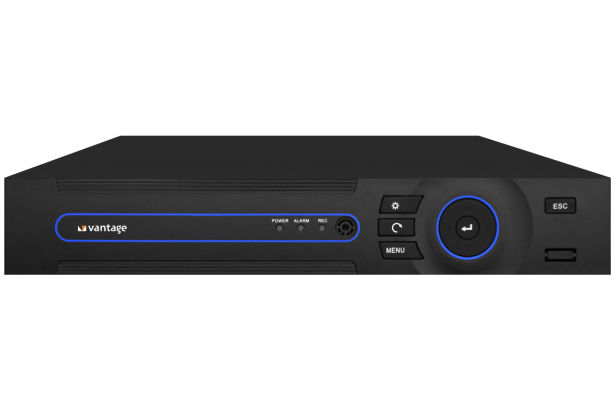

VV-DV3704-1SA3 4 Channel 5 In 1 DVR

  • High performance cloud technology DVR
  • Pentabrid(AHD+TVI+CVI+Analog+ IP) DVR with NVR functionality and IP camera support
  • Pentaplex operations : preview, record, playback, backup and remote access
  • Max 1080H resolution @ 25fps supported
  • Gigabit (10/100/1000) network port supported
  • HDMI / VGA / Video simultaneous video output
  • Supports remote monitoring on Mobile Client (Android, IOS), IE and through CMS
  • Motion based alarm support with email triggers
  • Metal enclosure with front panel controls
  • 3G / 4G & Wi-Fi supported
Category:
Description
Parameter Specifications
System
Operating System Embedded Linux Operating System
Multiplex Operations Multi-channel real-time recording, playback, network operation, USB backup
User interface Support 16-bit  true  color graphical menu interface and  mouse operation
Interface
Video Input 4-ch Composite video 1.0 Vp-p,  75 ohm
Audio Input 4-ch Line in RCA input (1 kΩ)
Video Output 1-ch BNC output
VGA Video Output 1-ch, Resolution: 1920×1080P/50Hz, 1440×900/50H,
1280×1024/50Hz, 1280×720/50Hz, 1024×768/50Hz
HDMI Video Output 1-ch, Resolution: 1920×1080P/50Hz, 1440×900/50Hz,
1280×1024/50Hz, 1280×720/50Hz, 1024×768/50Hz
Audio Output 1-ch Line in RCA
Communication RS 485 ( for PTZ and  Keyboard )
Network 1 x Gigabit  (10/100/1000) ethernet port (Rj45)
USB 2 x 2.0 USB interface (for backup, ?rmware upgrade and mouse interface)
Compression
Video compression H.264 dual  stream compression
Audio compression G.711
Sampling Rate 8 Khz
Resolution & Frame Rate
Recording 4 ch 1080H @ 25 fps
Playback 4 ch 1080H
Frame Rate Max 30 fps supported for NTSC, Max 25 fps for PAL
Network & Remote Monitoring
Cloud  Monitoring Supported
PMS Supported
DDNS Supported; Dynamic  and  Static  IP support
Protocols Supported HTTP, IPv4/IPv6, TCP/IP,  UPNP, RTSP, UDP, SMTP, NTP,

DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
CMS Full function CMS ( Central monitoring software)
User Access 10 users online  with professional authority management
Mobile Client  Application Supports android and  iOS APP for Smart phone and  tablets
Bandwidth control VBR (Automatic)  and  CBR (Manual) supported
Features
Simultaneous Playback Max 4 channel Simultaneous Playback
Pentabrid Mode 2 x 1080H(Analog) + 2 x 1080P(IP)
NVR Mode 9 x 1080p/ 4 x 1080p
Multi Screen Display 1 / 4 / Sequence
Security Password protection, user  management
Playback  Function Fast forward  / backward, Slow forward  / backward, Step  forward  /
backward
Search Mode Time/Date, Alarm,  Motion Detection & Exact Search (accurate to second)
Alarm Noti?cations FTP, Email noti?cation supported
Dual Stream Supported
Wireless 3G/  4G (external 3G/4G USB card)&Wi-Fi Supported(external Wi-Fi USB card)
Recording & Storage
Recording Mode Manual/Alarm/Motion Detection/Continuous
Storage 1 SATA port up to 4TB
Overwrite  Mode Continuous
General
Power Supply DC 12V
Power Consumption <10W (Hard disk not included)
Operating temperature -10°C to + 55°C
Working Humidity 95%  or less  (non condensing)
Dimensions 255 x 210 x 45mm
Weight 1.45kg (without  hard disk)
Certifications
Certifications  CE, FCC, RoHS
