Vantage Products

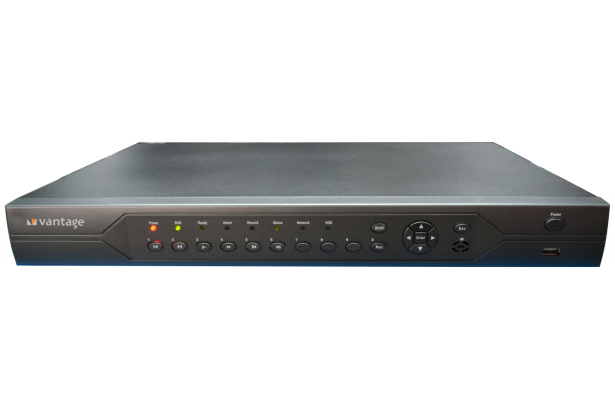

VV-DV5532-2SJ1 32 Channel AHD DVR

  • High performance cloud technology DVR
  • Trybrid DVR with NVR funtionality and IP camera support
  • H.264 video dual stream compression
  • Max 720P resolution supported
  • Gigabit (10/100/1000) network port
  • HDMI / VGA simultaneous video output
  • Supports remote monitoring on Mobile Client (Android, IOS), IE and through CMS
Category:
Description
Parameter Specifications
System
Operating System Embedded Linux Operating System
Multiplex Operations Multi-channel real-time recording, playback, network operation, USB backup
User interface Support 16-bit true color graphical menu interface and mouse operation
Interface
Video Input 32-ch Composite video 1.0 Vp-p, 75 ohm
Audio Input 16-ch Line in RCA input (1 kΩ)
VGA Video Output 1-ch, Resolution: 1920×1080P/60Hz, 1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI Video Output 1-ch, Resolution: 1920×1080P/60Hz, 1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output 1-ch Line in RCA
Communication RS 485 ( for PTZ and Keyboard )
Network 1 x Gigabit (10/100/1000) ethernet port (Rj45)
USB 2 x 2.0 USB interface (for backup, firmware upgrade and mouse interface)
Alarm Input 8
Alarm Output 1
Compression
Video compression H.264 dual stream compression
Audio compression G.711
Sampling Rate  8 Khz
Resolution & Frame Rate
Recording 32 ch 720P @ 15 fps, 24 ch 720P @ 25fps
Playback 8 ch 720 @ 15 fps, 8 ch 720 @ 25 fps
Frame Rate Max 30 fps supported for NTSC, Max 25 fps for PAL
Network & Remote Monitoring
Cloud Monitoring Supported
ARSP  Supported
DDNS Supported; Dynamic and Static IP support
Protocols Supported HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
CMS Full function CMS ( Central monitoring software)
User Access 10 users online with professional authority management
Mobile Client Application Supports android and iOS APP for Smart phone and  tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Features
Simultaneous Playback Max 16 channel Simultaneous Playback
Hybrid Mode Supported (8 x 720p Analog + 8 x 720p IP)
NVR Mode Supported (4 x 1080P/ 1 x 1080p + 8 x 720P/ 20 x 960p)
Multi Screen Display 1 / 4 / 9 / 16 / 36/ Sequence
Security Password protection, user management
Playback Function Fast forward / backward, Slow forward / backward, Step forward /backward
Search Mode Time/Date, Alarm, Motion Detection & Exact Search (accurate to second)
Alarm Notifications FTP, Email notification supported
Dual Stream Supported
Wireless 3G (external 3G USB card)&Wi-Fi Supported(external Wi-Fi USB card)
Recording & Storage
Recording Mode Manual/Alarm/Motion Detection/Continuous
Storage 2 SATA port up to 4TB each
Overwrite Mode Continuous Continuous
General
Power Supply DC 12V
Power Consumption <20W (Hard disk not included)
Operating temperature  -10°C to + 55°C
Working Humidity 95% or less (non condensing)
Chassis Standalone 1U chassis
Dimensions 440 x 290 x 50mm
Weight 4.50kg
Certifications
Certifications CE, FCC, ROHS
