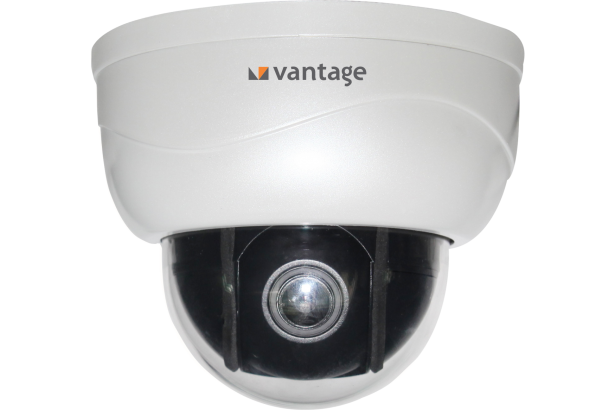

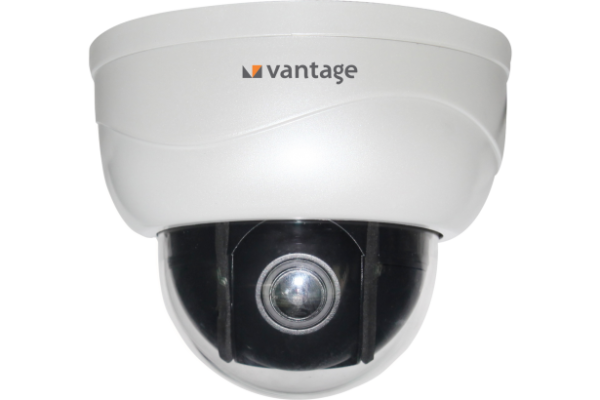

VV-NC8203P-3AIRB1 IR Night Vision Mini Speed PTZ Dome Camera

  • Full High Definition 2MP (1920 x 1080) resolution
  • 1/3″ Progressive Scan Sensor
  • 3x Optical zoom
  • 360° endless panning
  • Inbuilt IR LEDs for 30 mtrs IR range
  • Supports presets/pattern/patrol/pan scan
  • Inbuilt DWDR, 3D DNR & BLC functions
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) × 1080 (V)
Minimum Illumination Color: 0.01Lux@( F1.4, AGC ON); B/W: 0.0015Lux@( F1.4, AGC ON); 0 Lux with IR
Electronic Shutter Speed 1/1~ 1/10,000s
Signal to Noise > 62 dB
Gain Control Auto / Manual
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Auto Iris Auto / Manual
Lens
Lens Type 3.3 ~ 10mm, 3x Optical
Angle of View 109.2 ~ 35.8 degree (Wide-Tele)
Focus Auto Focus
Zoom 3x Optical Zoom
Zoom Speed Approx.3s (Optical Wide-Tele)
Aperture Range F1.4 ~ F3.5
Compression
Video compression  H.264 / MJPEG
H.264 codec profile  Main profile
Video Bit Rate  32 Kbps ~ 16 Mbps
Resolution and Frame Rate
Max. Resolution 1920 x 1080
Frame rate 50Hz: 25 fps (1920×1080), 25 fps (1280×720);
60Hz: 30 fps (1920×1080), 30 fps (1280×720)
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut  High performance Mechanical IR Cut Filter with auto switch
IR Source Inbuilt High performance IR LEDs
IR Range Upto 30 Mtrs
IR Irradiation Angle Automatically adjusted, depending on the zoom ratio
IR Life 40000 operation hours
Pan-Tilt
Pan Angle 360° endless pan rotation
Tilt Angle  0° to 90° (Auto Flip)
Pan Speed  0.1° ~ 45°/s
Tilt Speed  0.1° ~ 30°/s
Presets 220
Preset Accuracy  ± 0.1°
Patrol 3 patrols, up to 16 presets per patrol
Tour Pattern 4 Tour patterns
Power-off Memory Supported
PTZ position display  Supported
Operational Features
OSD Menu Supported
Camera ID On/Off
Privacy Masking Yes, Mutiple Zone Supported
Digital Zoom 16X
Motion Detection Supported
Backlight Compensation Supported
Video Adjustment Supported
WDR  D-WDR
Protocols PELCO-P, PELCO-D, Multi protocol support
Baud Rate 2400/4800/9600bps
DNR  Inbuilt 3D DNR (Digital Noise Reduction) circuit
Codec streaming capability Dual streaming
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
Security User authentication, watermark, IP address filtering, anonymous access, reset
Network & Remote Monitoring
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS, DDNS,NTP,RTSP,RTP,TCP/IP ,DHCP, PPPoE
System compatibility ONVIF
CMS  Full function CMS ( Central monitoring software)
User Access 32 users online with professional authority management
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Network storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Electrical
Power Requirement (± 10%) 12VDC/2A
Power Consumption MAX. 18W
Environmental
Enclosure Indoor PTZ Dome Enclosure
Mounting bracket External Mounting bracket included
Operating Temperature -10°C to +55°C
Operating Humidity 90% or less (non-condensing)
Mechanical
Color White
Certifications
Certifications CE, FCC, RoHS
