VV-NV3116-1ST1 16 Channel NVR – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

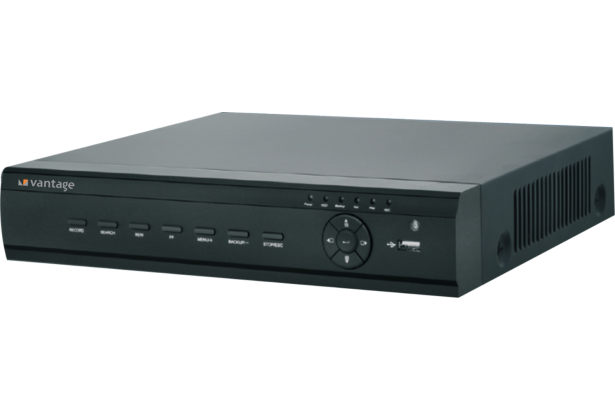

VV-NV3116-1ST1 16 Channel NVR

  • ONVIF Supported
  • Up to 3 Megapixels Resolution Display and Recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • Full function CMS (Central monitoring software) supported
  • Two way audio supported
  • Gigabit (10/100/1000) network port
  • Dual streaming technology to encode recording stream and network stream separately
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
Categories: ,
Category:
Description
Parameter Specifications
System
Operating System Embedded Linux Operating System
Multiplex Operations Simultaneous Multi-channel real-time recording, playback, network operation, USB backup
User interface Support 16-bit true color graphical menu interface and mouse operation
Interface
IP Video Input 3MP/1080P/960P/720P/D1 @30fps
Two way Audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)
VGA Video Output 1-ch, Resolution: 1920×1080P/60Hz
HDMI Video Output 1-ch, Resolution: 1920×1080P/60Hz
Audio Output 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network 1 x Gigabit (10/100/1000) ethernet port (Rj45)
USB USB 3.0 x 1, x USB 2.0 x 2(one for mouse, another for USB backup device)
Resolution & Frame Rate
Recording Resolution 3MP / 1080P / 720P / 4CIF
Frame Rate Main stream: 25 fps (P) / 30 fps (N); Sub stream: 25 fps (P) / 30 fps (N)
P layback Resolution 3MP / 1080P / 720P / 4CIF
Max playback capability Max 16 ch playback
Network & Remote Monitoring
DDNS Supported; Dynamic and Static IP support
CMS Full function CMS ( Central monitoring software)
Mobile Client Application Supports android and iOS APP for Smart phone and  tablets
Bandwidth control CBR (Manual) supported
Features
Security Password protection, user management
Playback Function Play/Pause/Fast forward / backward/Digital zoom
Search Mode  Time/Date, Alarm, Motion Detection & Exact Search (accurate to second)
Alarm Notifications FTP, Email notification supported
Recording & Storage
Recording Mode Manual/Alarm/Motion Detection/Continuous
Storage 1 SATA port up to 4TB
Overwrite Mode Supported
General
Power Supply DC 12V
Power Consumption <12W (Hard disk not included)
Operating temperature  -10°C to + 55°C
Working Humidity 95% or less (non condensing)
Chassis Standalone 1U chassis
Dimensions 300 × 270 × 58 mm
Weight ≤1 Kg ( without hard disk)
Certifications
Certifications CE, FCC, RoHS
