VV-NV3516-8ST1 16 Channel NVR – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

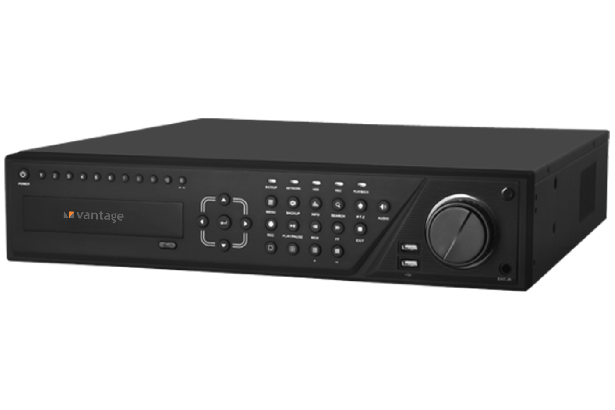

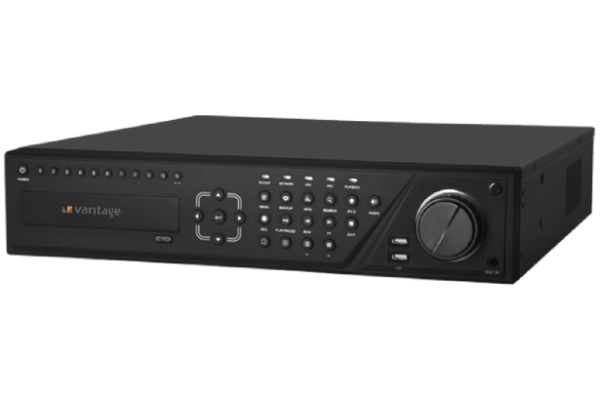

VV-NV3516-8ST1 16 Channel NVR

  • ONVIF Supported
  • Up to 5 Megapixels Resolution Display and Recording
  • H.265 video compression technology with real time encoding
  • Full function CMS (Central monitoring software) supported
  • Two way audio supported
  • Gigabit (10/100/1000) network port
  • Dual streaming technology to encode recording stream and
    network stream separately
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
Categories: ,
Category:
Description
Parameter Specifications
System
Operating System Embedded Linux Operating System
Multiplex Operations Simultaneous multi-channel real-time recording, playback, network
operation, USB backup
User interface: Support 16-bit true color graphical menu interface and  mouse operation
Interface
IP Video Input 16-ch
Two way Audio Input 1-ch, RCA (2.0 Vp-p,  1kΩ)
VGA Video Output 1-ch, Resolution: 1920×1080P/60Hz,
HDMI Video Output 1-ch, Resolution: 1920×1080P/60Hz
Audio Output 1-ch, RCA (2.0 Vp-p,  1kΩ)
Network 1 x Gigabit  (10/100/1000) ethernet port (Rj45)
USB USB 3.0 x 1, x USB 2.0 x 2(one for mouse, another for USB backup device)
Resolution & Frame Rate
Recording Resolution 5MP/  4Mp  / 3MP / 1080P / 720P / 4CIF
Frame Rate Main stream: 25 fps (P) / 30 fps (N); Sub  stream: 25 fps
(P) / 30 fps (N)
Playback  Resolution 5MP/  4Mp  / 3MP / 1080P / 720P / 4CIF
Max playback capability Max 16 ch playback
Network & Remote Monitoring
DDNS Supported; Dynamic  and  Static  IP support
CMS Full function CMS (Central  Monitoring Software)
Mobile Client
Application		 Supports android and  iOS APP for Smart phone and  tablets
Bandwidth control CBR (Manual) supported
Features
Security Password protection, user  management
Playback  Function Play/Pause/Fast forward  / backward/Digital zoom
Search Mode Time/Date, Alarm,  Motion Detection & Exact Search (accurate to second)
Alarm Notifications FTP, Email notification supported
Recording & Storage
Recording Mode Manual/Alarm/Motion Detection/Continuous
Storage 8 SATA port up to 4TB each
Overwrite Mode Supported
General
Power Supply DC 12V
Power Consumption <12W (Hard disk not included)
Operating temperature -10°C to + 55°C
Working Humidity 95%  or less  (non condensing)
Chassis Standalone 1U chassis
Dimensions 430 × 450 × 89 mm
Weight 4 Kg ( without hard disk)
Certifications
Certifications CE,FCC,RoHS
