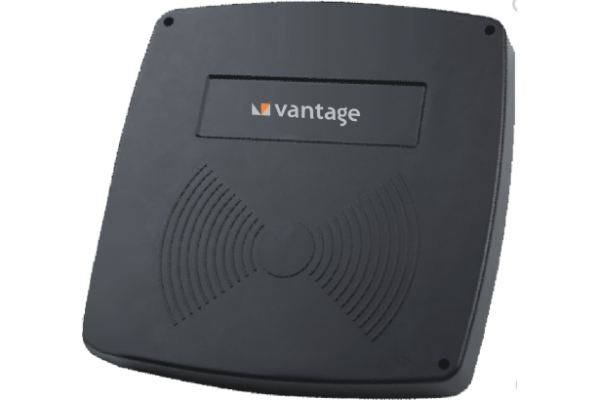

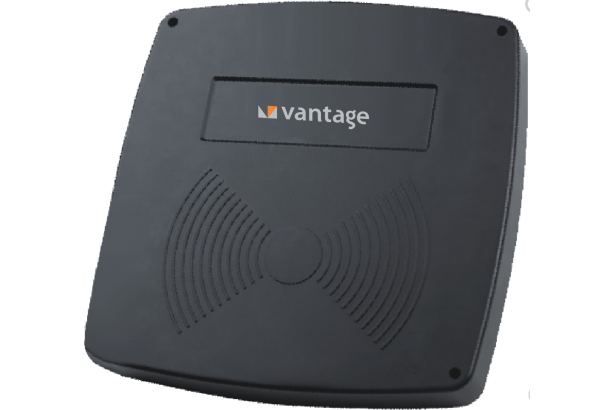

VV-RF600-MRP1 Mid Range RFID Reader

  • Wiegand-based Mid Range Readers
  • Operating frequency of 125 kHz
  • Read range of 40-60cm
  • Weigand transmit distance: 200Mtr
  • Multi-cards simultaneous read ability
  • Lightning proof protection
  • Fully weatherproof IP66 rating
Categories: ,
Description
Parameter Specifications
Reading Range Max.60cm
Buzzer Yes (Built-in)
Applicable Card Standard EM card
Transmit 125KHz
Receiving 125KHz
Modulation Transmit coded-ASK, Receiving-Super Heterodyne
Output Format RS485,RS232C,Wiegand or Customer specified format ABA Track II magstripe format
Indications 2 color LED ( Red and Amber)
Mounting/Waterproof Surface mount / IP 76
Operating Temp. -20-60°C
Humidity 10%-90%RH (Non condensing)
Dimension 270*270*39 mm
Operating Voltage/Current 12V DC /200 mA
Material ABS
Weight(including Expoxy) 2.00KG+ 5%
Color Black
