Vantage Products

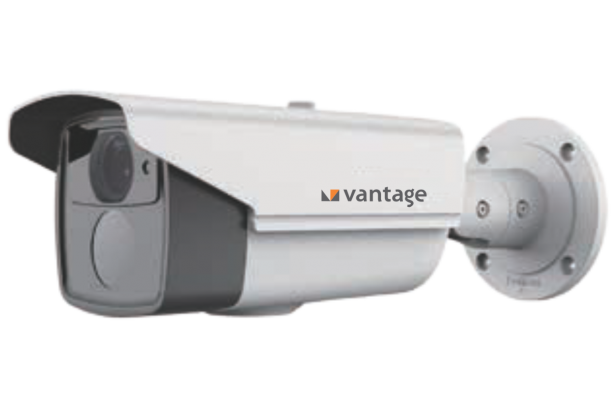

VP-AC2MA1B-TA46VFX1 2MP IR Night Vision Varifocal HD TVI Camera
- 2 megapixel Full HD 1080p resolution
- 2MP Progressive Scan sensor
- High performance SMART Array IR LEDs with intensity control
- OSD Menu Supported
- Inbuilt Array IR LEDs for up to 50 mtr IR range
- 3 Megapixel Varifocal 2.8mm to 12mm IR corrected lens
- Dual glass for zero IR diffusion and no fog
- IP 66 Weather proof outdoor enclosure
Description
| Parameter | Specifications |
| Camera | |
| Image Sensor | 2MP Progressive Scan sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Frequency | 50 Hz (PAL) / 60 Hz (NTSC) |
| Horizontal Resolution | 2 Megapixel |
| Minimum Illumination | Color : 0.01Lux @ F1.2, 0.014 lux @ F1.4, B&W: 0 Lux at IR on |
| S/N Ratio | > 62 dB |
| Gain Control | Auto |
| White Balance | ATW, AWC-SET, Indoor, Outdoor, Manual |
| DNR | Inbuilt 3D DNR (Digital Noise Reduction) circuit |
| Auto Iris | DC Drive |
| Gamma Correction | 0.45 |
| Sync System | Internal |
| Lens | |
| Lens Type | 3 Megapixel Varifocal 2.8mm to 12mm IR corrected lens |
| Lens Mount | φ14 |
| Focus | Manual Adjustment |
| Zoom | Manual Optical Zoom Adjustment |
| Day/Night Functionality | |
| Day & Night | True Day & Night with ICR |
| IR Cut | High performance Mechanical IR Cut Filter with auto switch |
| IR Source | High performance SMART Array IR LEDs with intensity control |
| IR Range | Up to 50 Mtrs |
| IR Life | 40000 Operation Hours |
| Operational Feature | |
| OSD Menu | Supported |
| OSD Joystick | Supported |
| Camera ID | On/Off |
| Privacy Masking | On/Off |
| Defog | On/Off |
| Motion Detection | On/Off |
| BLC | BLC/HSBLC |
| Video Adjustment | Supported |
| Mirror Function | On/Off |
| Digital Zoom | 62X |
| Anti-flicker | On/off |
| Scene Mode | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Electronic Shutter Speed | 1/25 – 1/500,000 |
| Interface | |
| Video Output | 1 Analog HD TVI Video output |
| Power Input | Standard DC Jack |
| Electrical | |
| Power Requirement (± 10%) | 12 VDC ± 10% |
| Power Consumption | Max 20 W |
| Environmental | |
| Enclosure | IP 66 Weather proof outdoor enclosure |
| Mounting bracket | Integrated mounting bracket with cable management |
| Operating Temperature | -40°C to + 60°C |
| Operating Humidity | 95% or less (non-condensing) |
| Mechanical | |
| Color | White |
| Dimensions | 300.82×100.76×107.55mm |
| Weight | 700g |
| Certifications | |
| Certifications | CE, FCC, RoHS |
