VP-BS130FR-FPCABZ1 Dual Authentication Face Recognition + Fingerprint + RFID TA System – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

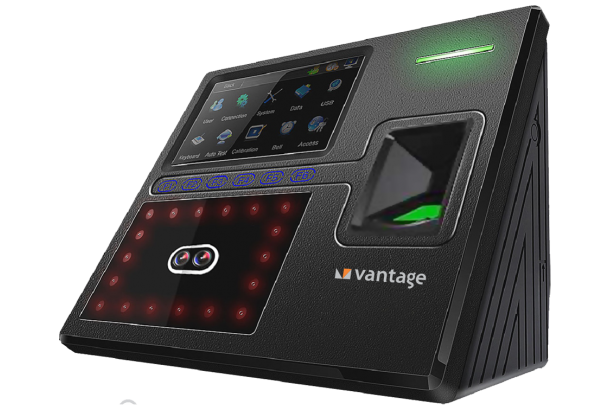

VP-BS130FR-FPCABZ1 Dual Authentication Face Recognition + Fingerprint + RFID TA System

  • Scratch Proof optical sensor
  • High resolution 600 dpi optical sensing
  • 360° verification angle
  • High Resolution Infrared Camera
  • In-built battery for backup
  • 4.3″ touch screen TFT
  • TCP-IP network connectivity
  • USB connectivity for communication and data backup
  • High performance sensing with < 1s identification time
  • Inbuilt access control functionality
  • Wifi connectivity support (optional)
  • GPRS connectivity support (optional)
Categories: ,
Description
Parameter Specifications
Hardware & Platform
CPU 32 bit Microprocessor
Memory 64M RAM, 256M Flash
Sensor Scratch proof High performance optical sensor
DPI rating 600 dpi resolution
Sensor area 16mm x 14mm
OS Embedded Linux OS
Operation mode Offline
Display 4.3″ touch screen TFT
Indicators Audio visual indication
Operation Capacity
Face templates 1200 user (1:N)
Fingerprint templates 3000 users
Card IDs 10000 users
Transaction capacity 100000 logs
Verification
Verification angle  360° verification angle
FAR < 0.0001%
FRR < 1%
Verification time < 1s
Algorithm Advanced Smart finger algorithm V 15.0
Verification mode 1:1; 1:N
Authentication modes Fingerprint only, EM Card only,  Face only, password only, Fingerprint/password /Face/EM Card,  Fingerprint / EM Card,  password/ EM Card,  password/Fingerprint, Face & Fingerprint,  Face & password, Fingerprint & password, Face &  EM Card,  EM Card & Face & Fingerprint, Fingerprint & password & EM Card
Operational Features
 Backup Battery Inbuilt battery backup for upto 6 hours standby time
Voice notification Supported
Real time Clock Supported
Card Reader Inbuilt 125 Khz EM card reader (Mifare reader optional)
Languages Multi-language support
Card Reader Range 3-5 cms read range
Access control support Door Relay Access control function with NO-NC support
Exit Switch support Exit switch NO type support
Access Time Zones 50 Access Time Zones
Function keys 6 number user defined function keys
Camera High Resolution Infrared Camera
Communication
Ethernet TCP/IP 10/100 ethernet interface
USB USB 2.0 for communication and data backup
Wifi Wifi connectivity optional through Wifi Module
GPRS Wifi connectivity optional through GPRS  Module
RS 485 Supported
Wiegand Wiegand  out
Power
Power requirement DC 12V, 3A
Environmental
Operation temperature 0°-50°C
Operating Humidity upto 90% (non condensing)
Mechanical
Construction material ABS plastic
Dimensions 193.6mm * 165mm * 111mm (Length*Width*Thickness)
Weight 1.75 Kg
Certifications CE, FCC, RoHS
