VV-RF400-EA1 TCP/IP Embedded Single Door Access Control – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

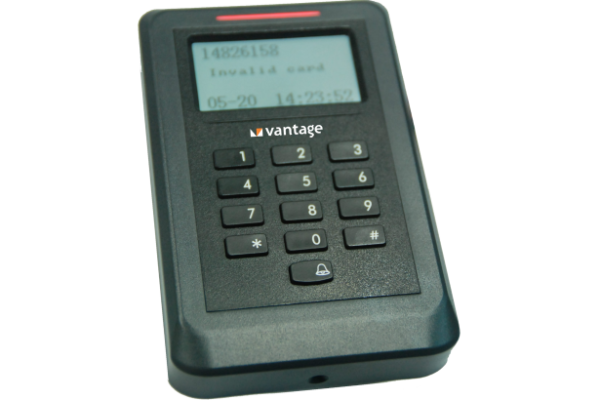

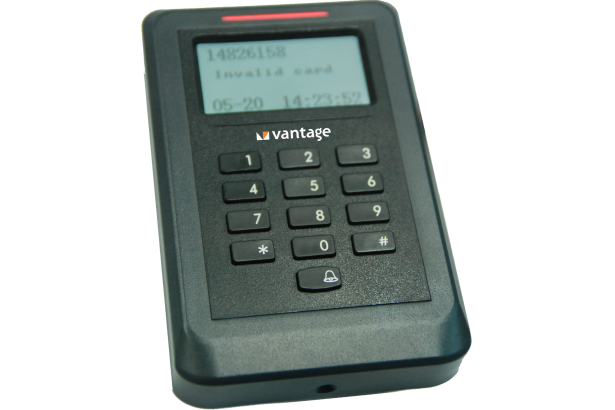

VV-RF400-EA1 TCP/IP Embedded Single Door Access Control

  • Directly integrate 10M TCP/IP communication with excellent transmission performance
  • All of chips are imported to meet industrial demand and wide working environment
  • Support to connect a external card reader
  • Each door’s time zone has as many as 16 groups, and each group can choose differentverification methods
  • Support multi verification: Card, card+PSW, PSW, double cards, free pass, doortimer, timed alarm.
  • Support anti pass back and global anti pass back
  • Support many kinds of events’ alarm output like invalid card, invalid time, door alarm,or door open overtime
  • Support the setting of each card’s valid time
  • All of access control devices support Rs485, TCP/IP controller’s mixing installation
  • Support time attendance and on line guard tour functon
Categories: ,
Description
Parameter Specifications
User capacity 21000 users
Transaction capacity 50000 logs
Alarm event 32000 logs
Communication  TCP/IP
Communication distance Software  management without limitation
Card Reader Wiegand protocol
Door open method Card, Card+PSW, PSW,double card, software, free pass, Push button, door timer
Panel size 113x76x18mm
Panel weight  80g
Case color Black
Working temperature <50 degree
Humidity 10% to 95% R.H
Working voltage 12V DC
Working current  <240mA
Standard interface
Card reader 1
Fire alarm input 1
Lock release button input 1
Door sensor input 1
Lock output 1
TCP/IP communication 1
