Vantage Products

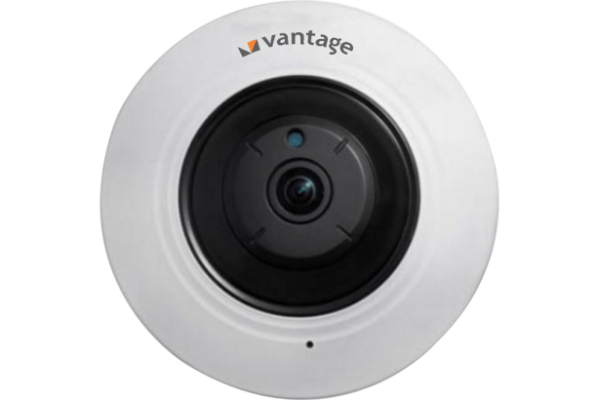

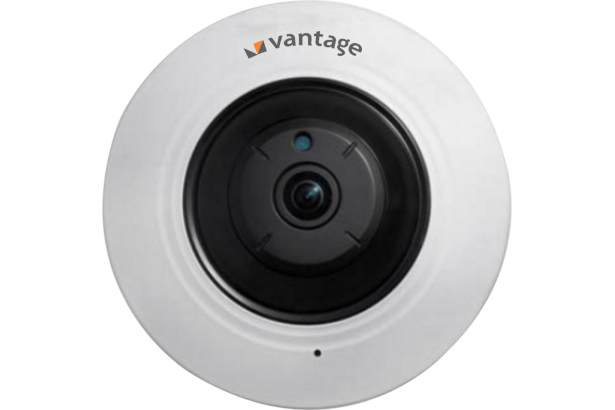

VP-NC3264D-FEX1 180° Indoor Camera

  • Ultra High Definition 4MP (2560X1440) resolution
  • High performance IR Cut filter
  • Digital WDR
  • Megapixel lens 1.6 mm @F1.6, angle of view: 180°
  • Multiple ePTZ streams with preset and patrol function
  • On board storaage supported by Micro SD / SDHC / SDXC card upto 64 GB
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3” Sony Exmor Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 2560 (H) × 1440 (V)
Minimum Illumination Color : 0.01Lux @ F1.2, B/W: 0.0015 lux @ F1.4
Electronic Shutter Speed 1/25s (1/30s) ~ 1/100,000s
Gain Control  Auto
White Balance Auto (2000K to 10000K)
Signal to Noise > 62 dB
Auto Iris DC Drive
Lens
Lens Type Megapixel lens 1.6mm @F1.6, Angle of view 186°
Lens Mount M12
Focus Fixed
Compression
Video compression H.264 / MJPEG
H.264 codec profile  Main profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Audio compression G.711 / G.726 / MP2L2
Audio Bit Rate 64 Kbps (G.711) / 16 Kbps (G.726) / 32-128 Kbps (MP2L2)
Resolution and Frame Rate
Max. Resolution 256 0 x 1440
Frame rate 50Hz: 12.5FPS (2560 x 1440), 25fps (1920 x 1080,1280X 720)
60Hz : 15FPS (2560 x 1440), 25fps (1920 x 1080,1280
X 720)
Operational Features
Wide Dynamic Range (WDR) Digital WDR
Backlight compensation Yes, zone configurable
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
High Light Compensation Supported
Codec streaming capability High Frame Rate Mode: 1 or 4
Multi-Channel Mode: up to 5
(No sub-streams)
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
Security User Authentication, watermark, reset button
Onboard Storage Built-in Micro SD / SDHC / SDXC card slot, up to 64 GB
Alarm trigger Motion detection, Tampering alarm, Network disconnect, IP address confict, Storage full , Storage error
Network & Remote Monitoring
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility ONVIF, PSIA, CGI,ISAPI
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Network storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Electrical
Power Requirement (± 10%) 12 VDC ± 10% , PoE (802.3af)
Power Consumption Max. 6W
Environmental
Enclosure Indoor Dome Enclosure
Operating Temperature -10°C to + 55°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color White
Dimensions 119.9 x 41.2mm
Weight 600g
Certifications
Certifications UL, CE, FCC, RoHS
