VV-AC13MA2B-1A60F3K1 1.3MP IR Night Vision HD Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

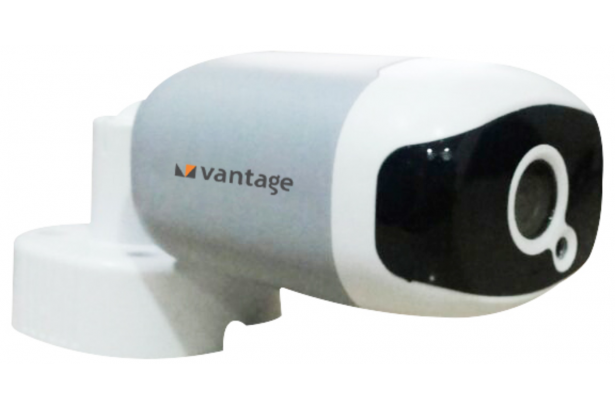

VV-AC13MA2B-1A60F3K1 1.3MP IR Night Vision HD Camera

  • 1.3 megapixel HD 960p resolution
  • 1/3” Progressive Scan Sensor
  • High performance IR cut mechanical filter for true
    day & night vision
  • Inbuilt IR LEDs for 35 mtr IR range
  • 3 megapixel 3.6 mm IR corrected lens
  • High performance SMART Array IR LEDs with intensit y control
  • Dual glass for zero IR diffusion and no fog
  • IP65 weather proof outdoor enclosure
Category:
Description

Parameter Specifications
Camera
Image sensor 1/3″ Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1280 (H) × 960 (V)
Frequency 50 Hz (PAL) / 60 Hz (NTSC)
Horizontal Resolution 1.3 Megapixel
Minimum Illumination Color : 0.01Lux @ F1.2, 0.015 lux @ F1.4, B&W: 0 Lux at IR on
Signal to Noise > 62 dB
Gain Control Auto
White Balance Auto (2000K to 10000K)
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Auto Iris DC Drive
Gamma Correction 0.45
Sync System Internal

Lens
Lens Type 3 Megapixel 3.6mm IR corrected lens
Lens Mount ɸ 14
Focus Fixed

Day/Night
Functionality
Day & Night True Day & Night with ICR
IR Cut High performance Mechanical IR Cut Filter with auto switch
IR Source High performance 2 nos. SMART Array IR LEDs with intensity
control
IR Range Up to 35 Mtrs
IR Life 40000 operation hours

Interface
Video Output 1 Analog AHD Video output
Power Input Standard DC Jack

Electrical
Power Requirement (± 10%) DC 12V (± 10%)
Power Consumption Max 7 W with IR on
Environmental
Enclosure IP 65 Weather proof outdoor enclosure
Mounting bracket External mounting bracket included
Operating Temperature -20°C to + 60°C
Operating Humidity 95% or less (non-condensing)

Mechanical
Color White
Dimensions 170 X 52 X 44 mm
Weight 0.33kg

Certifications
Certifications CE, FCC, RoHS
