VV-AC2M61B-M02F3L1 2MP IR Night Vision Full HD Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

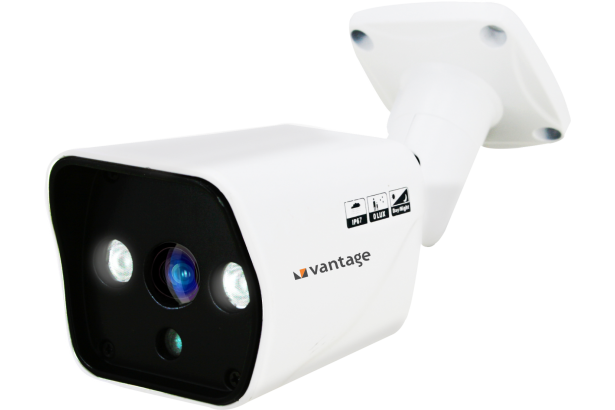

VV-AC2M61B-M02F3L1 2MP IR Night Vision Full HD Camera

  • 2Megapixel Full HD 1080p Resolution
  • 4 in 1 (Analog/AHD/TVI/CVI) camera supported
  • Inbuilt Array IR LEDS for 40 mtr IR range
  • High performance IR Cut mechanical filter for True Day
    & Night vision
  • 3 Megapixel 3.6mm IR corrected lens
  • High performance Smart Array IR LEDs with intensity control
  • OSD Menu supported
  • IP66 Weather proof outdoor enclosure
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) × 1080 (V)
Frequency 50 Hz (PAL) / 60 Hz (NTSC)
Horizontal Resolution 2 Megapixel
Minimum Illumination Color : 0.01Lux @ F1.2, B&W: 0.0015 lux @ F1.4,  0 Lux at IR on
Signal to Noise > 62 dB
Shutter Time 1/25s ~ 1/100,000s
Gain Control Auto
White Balance Auto (2000K to 10000K)
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Auto Iris DC Drive
Gamma Correction 0.45
Sync System Internal
Lens
Lens Type 3 Megapixel 3.6 mm IR corrected lens
Lens Mount M12
Focus Fixed
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut High performance Mechanical IR Cut Filter with auto switch
IR Source High performance 2 nos. SMART Array IR LEDs with intensity control
IR Range Up to 40 Mtrs
IR Life 40000 Operation Hours
Interface
Video Output 1 Analog / AHD / TVI / CVI Video output
Power Input Standard DC Jack
Electrical
Power Requirement (± 10%) 12 VDC ± 10%
Power Consumption Max 7W with IR on
Environmental
Enclosure IP 66 Weather proof outdoor enclosure
Mounting bracket Integrated mounting bracket with cable management
Operating Temperature -20°C to + 60°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color White
Dimensions 196.7 x 69.9
Weight 570g
Certifications
Certifications CE, FCC, RoHS
