VP-NC35130P-H21X1 High Speed PTZ Dome Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

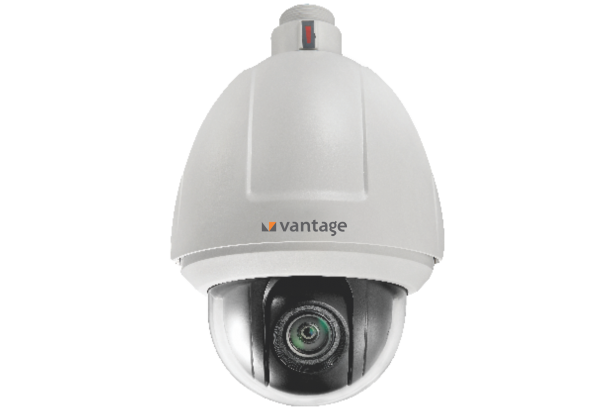

VP-NC35130P-H21X1 High Speed PTZ Dome Camera

  • HD 1.3MP (1280 x 960) resolution
  • 1/3″ Sony Exmor Progressive Scan Sensor
  • 30x Optical zoom
  • Inbuilt Smart analytics for Virtual Line detection, Virtual Plane Intrusion detection, Face detection
  • Advanced Intelligent functions like ROI(Region of interest) codec, Defog, EIS (Electronic Image Stabilization), Audio detection,                                                   Video quality detection: defocus & scene change
  • Inbuilt WDR, 3D DNR & BLC functions
  • Smart tracking feature supported
  • IP66 Weather Proof Outdoor Enclosure with inbuilt Heater and Fan
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Sony Exmor Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1280 (H) × 960 (V)
Minimum Illumination F1.6, 1/30 sec, 50 IRE, AGC On: Color: 0.3Lux; B/W: 0.02Lux;
F1.6, 1/1 sec, 50 IRE, AGC ON:Color: 0.02Lux; B/W: 0.002Lux
Electronic Shutter Speed 1/1~ 1/30,000s
Signal to Noise > 62 dB
Gain Control Auto / Manual
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Auto Iris Auto / Manual
Lens
Lens Type 4.3 ~ 129mm, 30X optical zoom
Angle of View 57.4 ~ 2.8 degree (Wide-Tele)
Focus Auto Focus
Zoom 30x Optical Zoom
Zoom Speed Approx.3s (Optical Wide-Tele)
Aperture Range F1.6 ~ F5.0
Compression
Video compression H.264/MJPEG/MPEG4
H.264 codec profile  Main profile
Audio Compression G.711u /G.711a /G.726 /MP2L2
Video Bit Rate 32 Kbps ~ 16 Mbps
Resolution and Frame Rate
Max. Resolution 1280×960
Frame rate 50Hz:25fps(1280×960), 25fps (1280×720); 60Hz:30fps(1280×960), 30fps (1280×720)
Pan-Tilt
Pan Angle 360° endless pan rotation
Tilt Angle -5° to 90° (Auto Flip)
Pan Speed 0.1° ~ 300°/s(Manual), 540°/s(Preset)
Tilt Speed  0.1° ~ 240°/s(Manual), 400°/s(Preset)
Presets 300
Preset Accuracy  ± 0.1°
Patrol 8 patrols, up to 32 presets per patrol
Tour Pattern 4 Tour patterns
Power-off Memory Supported
PTZ position display  Supported
Operational Features
OSD Menu Supported
Camera ID On/Off
Privacy Masking 24 privacy masks programmable
Digital Zoom 16X
Motion Detection Supported
Backlight Compensation On/Off
Video Adjustment Supported
WDR On/Off
Protocols PELCO-P, PELCO-D, Multi protocol support
Baud Rate 2400/4800/9600bps
DNR  Inbuilt 3D DNR (Digital Noise Reduction) circuit
Smart Tracking Supported
Defog Supported
Codec streaming capability Dual streaming
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
Security User authentication, watermark, IP address filtering, anonymous access, reset
Onboard Storage Micro SD slot, up to 128GB
Network & Remote Monitoring
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS, DDNS,NTP,RTSP,RTP,TCP/IP ,DHCP, PPPoE
System compatibility ONVIF, PSIA, CGI
CMS  Full function CMS ( Central monitoring software)
User Access 32 users online with professional authority management
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Network storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Audio Input 1 Mic in/Line in interface, Line input: 2 ~ 2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface, Line level, impedance: 600Ω
Alarm  Input 7
Alarm Output 2
Video Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Electrical
Power Requirement (± 10%) 24 VAC
Power Consumption MAX. 40W
Environmental
Enclosure IP66 Weather Proof Outdoor Enclosure
Mounting bracket External Mounting bracket included
Operating Temperature -30°C to +65°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color White
Dimensions Φ220×325.5mm
Weight Approx. 4Kg
Certifications
Certifications UL, CE, FCC, RoHS
