Vantage Products

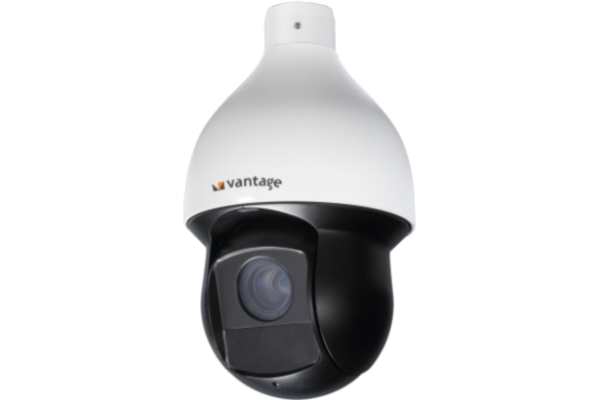

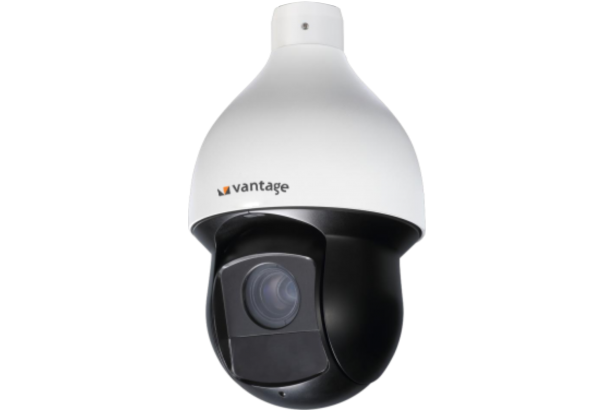

VP-NC4M30P-38WDIRD5 IR Night Vision High Speed PTZ Dome Camera (Copy)

  • H.265 & H.264 real time video encoding
  • 1/3″ Progressive Scan Sensor
  • 30x Optical zoom
  • 360° endless panning
  • Inbuilt IR LEDs for 100 mtrs IR range
  • Inbuilt Smart Analytics like Tripwire, Intrusion Detection, Abandoned Object Detection, Missing Object Detection(Optional)
  • Inbuilt Face Detection,WDR, 3D DNR & BLC functions
  • Inbuilt Micro SD Card Slot supported up to 128GB
  • IP66 Weather proof Outdoor enclosure
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 2688(H) x 1520(V) 4MP
Minimum Illumination Color: 0.05Lux@( F1.6, AGC ON); B/W: 0.005Lux@( F1.6, AGC ON); 0 lux with IR
Electronic Shutter Speed 1/3 ~ 1/30,000s
Signal to Noise Ratio > 62 dB
Gain Control Auto / Manual
White Balance Auto, ATW, Indoor, Outdoor, Manual
Auto Iris Auto / Manual
Lens
Lens Type 4.5mm ~ 135.0mm, 30x Optical
Angle of View 60° ~ 2.2° (Wide-Tele)
Focus Auto Focus
Zoom 30x Optical Zoom
Zoom Speed Approx.3s (Optical Wide-Tele)
Aperture Range F1.6~F4.4
Compression
Video compression H.265 /H.264 / MJPEG
H.264 codec profile  Main profile
Video Bit Rate 192K ~ 8192Kbps
Resolution and Frame Rate
Max. Resolution 2592×1520
Frame rate 4M/3M(1~25/30fps)/1080P(1~50/60fps)/1.3M/720P(1~25/30fps)
Third Stream 1080P /960P/720P(1 ~ 25/30fps)
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut  High performance Mechanical IR Cut Filter with auto switch
IR Source Inbuilt High performance IR LEDs
IR Range Up to 100 Mtrs
IR Irradiation Angle Automatically adjusted, depending on the zoom ratio
IR Life 40000 operation hours
Pan-Tilt
Pan Angle 360° endless pan rotation
Tilt Angle  -15° to 90°(Auto flip 180°)
Pan Speed  0.1° ~ 300°/s(Manual), 400°/s(Preset)
Tilt Speed  0.1° ~ 200°/s(Manual), 300°/s(Preset)
Presets 300
Preset Accuracy  ± 0.1°
Patrol 8 patrols
Tour Pattern 5 Tour patterns
Power up Action Auto restore to previous PTZ and lens status after power failure
PTZ position display  Supported
Operational Features
OSD Menu Supported
Camera ID On/Off
Privacy Masking 24 privacy masks programmable
Digital Zoom 16X
Motion Detection Supported
Backlight Compensation Supported
Video Adjustment Supported
WDR Supported
Protocols PELCO-P, PELCO-D, Multi protocol support
Baud Rate 2400/4800/9600bps
DNR  Inbuilt 3D DNR (Digital Noise Reduction) circuit
Codec streaming capability Triple streaming
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
Security User authentication, watermark, IP address filtering, anonymous access, reset
Onboard Storage Micro SD slot, up to 128GB
Network & Remote Monitoring
Protocols IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
System compatibility ONVIF, PSIA, CGI
CMS  Full function CMS ( Central monitoring software)
User Access 20 users online with professional authority management
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Interface
Ethernet 1 x RJ45 10/100/1000 Ethernet port
Audio Input / Output 1 Line input/ 1 Audio Output interface
Alarm  Input/Output 2/1
Video Output 1 BNC Composite Video Output
Electrical
Power Requirement (± 10%) AC24V, POE plus(802.3at)
Power Consumption MAX. 23W(IR on)
Environmental
Enclosure IP 66 Weather proof outdoor enclosure
Mounting bracket External Mounting bracket included
Operating Temperature -40°C to +70°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color White
Dimensions Φ186.0(mm) x 309(mm)
Weight 3.5 Kg
Certifications
Certifications UL, CE, FCC, RoHS
