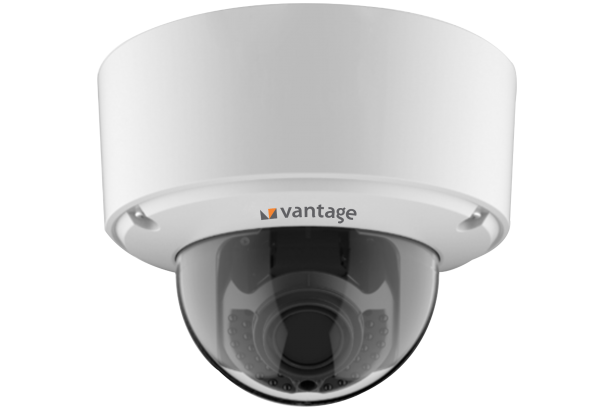

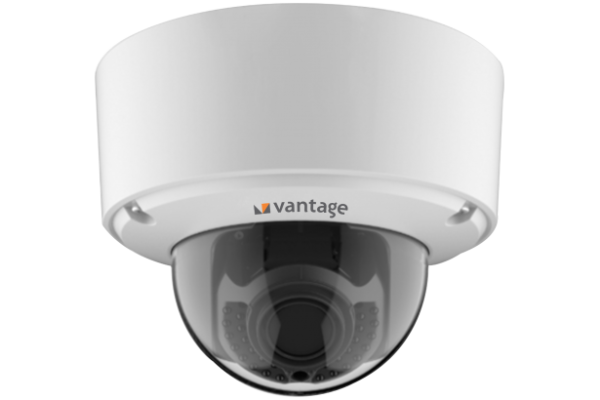

VP-NC5303FD-AZWDIR3X1 60 FPS IR Night Vision Smart Varifocal Motorized Zoom Camera

  • Full High Definition 3MP (2048 x 1536) resolution
  • Triple-Stream(H.264/MJPEG) supported
  • Inbuilt 120db True WDR, 3D DNR & BLC functions
  • Onboard SD card slot upto 128GB support
  • Inbuilt Smart analytics for Virtual Line detection, Virtual Plane
    Intrusion detection, Face detection, unattended object
  • Vandal Proof IK10 Dome Enclosure
  • IP66 Weather Proof Outdoor Enclosure
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/2.8″ Sony Exmor Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 2048 (H) × 1536 (V)
Minimum Illumination Color : 0.005Lux @ F1.2, B&W: 0.007 lux @ F1.4, 0 Lux at IR on
Electronic Shutter Speed 1s ~ 1/100,000s
Gain Control  Auto
White Balance Auto (2000K to 10000K)
Signal to Noise > 62 dB
Auto Iris DC Drive
Lens
Lens Type Megapixel Motorized Zoom lens 2.8mm to 12mm
Lens Mount Φ14
Focus Auto
Zoom Motorized Optical Zoom Adjustment
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut High performance Mechanical IR Cut Filter with auto switch
IR Source Inbuilt Smart IR LEDs with intensity control
IR Range 40 Mtr
IR Life 40000 Operation Hours
Compression
Video compression H.264 / MJPEG
H.264 codec profile  Main profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Audio compression G.711 / G.726 / MP2L2
Audio Bit Rate 64 Kbps (G.711) / 16 Kbps (G.726) / 32-128 Kbps (MP2L2)
Resolution and Frame Rate
Max. Resolution 2048 x 1536
Frame rate 50 Hz: 45fps (2048 x 1536), 50fps (1920 x 1080, 1280 x 720)
60 Hz: 45fps (2048 x 1536), 60fps (1920 x 1080, 1280 x 720)
Third Stream 50/60Hz:10fps@1280 x 720
Operational Features
Wide Dynamic Range (WDR) 120db WDR
Backlight compensation Yes, zone configurable
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Defog Supported
EIS Supported
Intrusion Detection Supported
Face Detection Supported
Smart VQA Supported
Picture overlay 128 x 128, BMP 24bit, zone configurable
Codec streaming capability Triple streaming
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
ROI ( Region of Interest) Yes, zone configurable upto 4 areas
Security User Authentication, watermark, reset button
Onboard Storage Built-in Micro SD / SDHC / SDXC card slot, up to 128 GB
Alarm trigger  motion detection, tampering alarm
Network & Remote Monitoring
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility ONVIF, PSIA, CGI,ISAPI
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Network storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Audio Input 1
Audio Output 1
Alarm Input 1
Alarm Output 1
Electrical
Power Requirement (± 10%) 12 VDC/24V AC / PoE (802.3af)
Power Consumption Max 12W on Motorized Zoom
Environmental
Enclosure Vandal Proof Outdoor Dome enclosure
Operating Temperature -30°C to + 60°C
Operating Humidity 95% or less (non-condensing)
Impact Protection IEC60068-2-75Eh, 50J; EN50102, up to Ik10
Mechanical
Color White
Dimensions 164.9 × 127 mm
Weight 2100g
Certifications
Certifications UL, CE, FCC, RoHS
