VP-NC71612D-FEIRX1  IR Night Vision 360° Outdoor Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

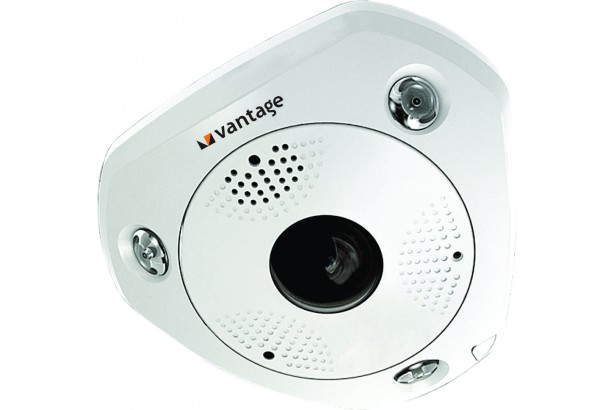

VP-NC71612D-FEIRX1  IR Night Vision 360° Outdoor Camera

  • Ultra High Definition 12MP (4000 x 3072) resolution
  • High performance IR Cut mechanical filter for True Day
    & Night vision
  • Inbuilt DWDR, 3D DNR, BLC functions
  • Megapixel IR corrected lens 1.98mm@F2.4, angle of view: 360°
  • Multiple ePTZ streams with preset and patrol function
  • On board storage supported by Micro SD / SDHC / SDXC
    card up to 128 GB
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/1.7″ Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 4000 (H) × 3072 (V)
Minimum Illumination Color : 0.01Lux @ F1.2, 0.04 lux @ F2.4, 0 Lux at IR on
Electronic Shutter Speed 1/25s (1/30s) ~ 1/100,000s
Gain Control  Auto
White Balance Auto (2000K to 10000K)
Signal to Noise > 62 dB
Auto Iris DC Drive
Lens
Lens Type Megapixel IR corrected lens 1.98mm @F2.4, Angle of view: 360°
Lens Mount M12
Focus Fixed
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut h High performance Mechanical IR Cut Filter with auto switc
IR Source Inbuilt Smart IR LEDs with intensity control
IR Range 15 Mtr
IR Life 40000 Operation Hours
Compression
Video compression H.264 / MJPEG
Audio compression G.711/G.722.1/G.726/MP2L2/AAC/PCM
H.264 codec profile  Main profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps
(MP2L2) / 16-64Kbps(AAC)
Resolution and Frame Rate
Max. Resolution 4000 x 3072
Frame rate High-frame Mode: support
50Hz: 1 x fisheye (4000 x 3072, 25fps) or (3072 x 3072, 25fps) or 4 x PTZ at (1600 x 1200, 30fps)
60Hz: 1 x fisheye (4000 x 3072, 25fps) or (3072 x 3072, 30fps) or 4 x PTZ at (1600 x 1200, 30fps)
Multi-channel Mode: support
50Hz: 1 x fisheye (2048 x 2048, 12fps) and 1 x fisheye (720 x 720, 60Hz: 1 x fisheye (2048 x 2048, 15fps) and 1 x fisheye (720 x 720, 15fps) and 3 x PTZ (1600 x 1200, 15fps)
Operational Features
Wide Dynamic Range (WDR) DWDR
Backlight compensation Yes, zone configurable
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
High Light Compensation Supported
Codec streaming capability High Frame Rate Mode: 1 or 4
Multi-Channel Mode: up to 5
(No sub-streams)
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
Security User authentication, watermark, IP address filtering, anonymous access, reset
Alarm trigger Line Crossing Detection, Intrusion Detection,Motion detection, Tampering alarm, Network disconnect, IP address confict, Storage full
Network & Remote Monitoring
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,
SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System compatibility ONVIF, PSIA, CGI,ISAPI
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Onboard storage Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128GB
Network Storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Audio Input 1xbuilt in microphone, 24dB
Audio Output  1xbuilt in Speaker
Electrical
Power Requirement (± 10%) 12 VDC ± 10% , PoE (802.3af)
Power Consumption Max. 12W
Environmental
Enclosure IP66 Outdoor Vandal Proof Dome Enclosure
Operating Temperature -30°C to + 60°C
Operating Humidity 95% or less (non-condensing)
Impact Protection IEC60068-2-75Eh, 50J; EN50102, up to Ik10
Mechanical
Color White
Dimensions 164 x 152.8 x 43.8mm
Weight 1400g
Certifications
Certifications UL, CE, FCC, RoHS
