VP-NC7508PD-4AX1 Multi Sensor Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

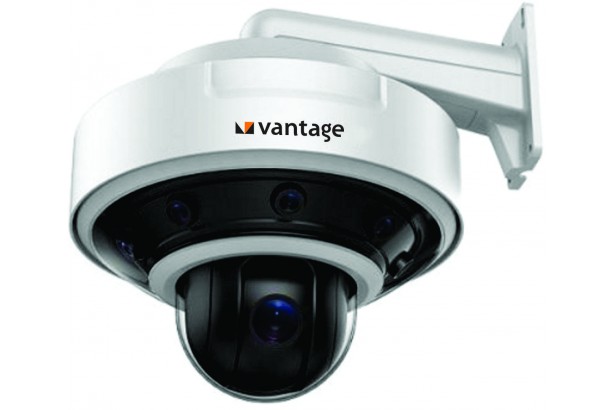

VP-NC7508PD-4AX1 Multi Sensor Camera

  • Four1/1.9” Progressive Scan CMOS, up to 4096 ×1800
    resolution @30fps
  • Horizontal angle of view: 180°, Vertical angle of view:80°
  • 36X optical zoom, 16X digital zoom
  • Ultra low light illumination up to 0.002 Lux supported
  • Smart detection: Face detection, support intrusion detection, line
    crossing detection, region entrance detection, and region exiting detection
  • On board storage supported by Micro SD / SDHC / SDXC
    card up to 128 GB
Category:
Description
Parameter Specifications
Panoramic Camera
Image Sensor 1/1.9” Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 4096 (H) × 1800 (V)
Minimum Illumination Color: 0.005Lux@( F2.2, AGC ON); B/W:0.0005Lux@( F2.2, AGC ON)
Lens Type  5 mm Megapixel Lens
Angle of View Horizontal: 180°, Vertical: 80°
Main Stream 50Hz: 25fps(4096× 1800,3840× 1680,2720×1192);60Hz: 30fps (4096× 1800,3840× 1680,2720×1192)
Sub Stream 50Hz:25fps(176 × 144, 352 × 288, 704 × 320)
60Hz:30fps(176 × 144, 352 × 288, 704 × 320)
Third Stream 50Hz:25fps(176 × 144, 352 × 288, 704 × 320, 1280 × 960,
1280 × 720, 1920 × 1080);
60Hz:30fps(176 × 144, 352 × 288, 704 × 320, 1280 × 960,
1280 × 720, 1920 × 1080)
Image Compression H.264(Baseline, Main, High Profile)/MJPEG
Tracking PTZ Camera
Image Sensor 1/1.9” Progressive Scan CMOS
Max. Image Resolution 1920 ×1080
Min. Illumination Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON)
Focal Length 5.7-205.2mm, 36X
Zoom Speed Approx.6.6s (Optical Wide-Tele)
Min. Working Distance 58.7° -2.0°(Wide-Tele)
Angle of View 10-1500mm(Wide-Tele)
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 24 privacymasks programmable; optional multiple colors and mosaics
Optical Defog Support
ROI encoding Support 24 areas with adjustable levels
Main Stream 50Hz: 25fps(1920 × 1080,1280 × 960, 1280 × 720)
60Hz: 30fps(1920 × 1080,1280 × 960,1280 × 720)
Sub Stream 50Hz:25fps(704×576, 352×288, 176×144)
60Hz:30fps(704×480, 352×240, 176×120)
Third Stream 50Hz:25fps(1920×1080, 1280×960, 1280×720, 704×576,
352×288, 176×144)
60Hz:30fps(1920×1080, 1280×960, 1280×720, 704×480,
352×240, 176×120)
Image Compression H.264(Baseline, Main, High Profile)/MJPEG/MPEG4
Pan and Tilt (Tracking PTZ Camera)
Range Pan 360° endless; Tilt: -15°~ 90° (Auto flip)
Speed Pan Manual Speed 0.1°~300°/s, Pan Preset Speed: 540°/s Tilt Manual Speed:
0.1°~240°/s, Tilt Preset Speed: 400°/s
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
Park Action Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan
Scheduled Task Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Dome adjust/Aux output
Power-off memory Support
Operational Features
Tracking Mode Manual / Auto
Inbuilt Analytics Face Detection, Line Crossing Detection, Intrusion Detection, Region Entry / Exit Detection
High Light Compensation Support
DNR  Inbuilt 3D DNR (Digital Noise Reduction) Circuit
Wide Dynamic Range 120DB
EIS Support
DEFOG Support
Network & Remote Monitoring
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,
SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System compatibility ONVIF, PSIA, CGI,ISAPI
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Onboard storage Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128GB
Network Storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Fiber 1x 10/100/1000M Fiber Interface
Power Input Standard DC Jack / 2 Pin Wire Terminal Interface
Audio Input 1 Mic in/Line in interface, line input: 2-2.4V[p-p]
Audio Output 1 Audio output interface, line level
Alarm Input 7
Alarm Output 2
Electrical
Power Requirement (± 10%) 36 VDC ± 10%
Power Consumption Max. 70W
Environmental
Enclosure IP66 Outdoor Vandal Proof Dome Enclosure
Operating Temperature -40°C to + 65°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color Grey and Black
Dimensions 390 x 361.3 mm
Weight 14kg
Certifications
Certifications UL, CE, FCC, RoHS
