VV-AC2M33P-3S36IRB1 2MP, 33X Array IR Night Vision Outdoor PTZ Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

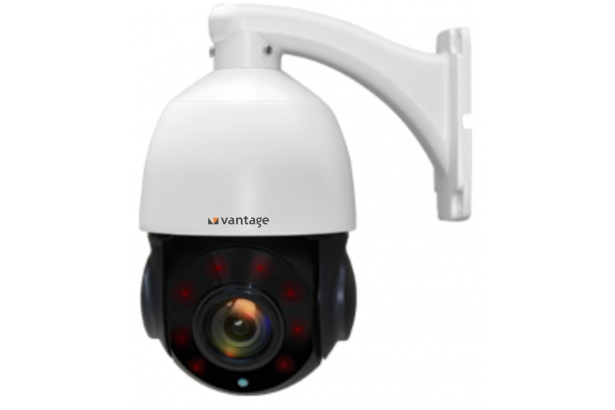

VV-AC2M33P-3S36IRB1 2MP, 33X Array IR Night Vision Outdoor PTZ Camera

  • 2 Megapixel Full HD 1080p Resolution
  • 1/3″ Sony Exmor Progressive Scan Sensor
  • Powerful 33x Optical zoom
  • 360° endless panning
  • Inbuilt Array IR up to 150 mtrs IR range
  • Inbuilt 3D DNR & BLC functions
  • Supports presets/pattern/patrol/pan scan
  • IP66 Weather proof Outdoor Enclosure with Double Layer
    Metal Body Construction
Category:
Description
Parameter Specifications
Camera
Image  sensor 1/3″ Sony Exmor Progressive Scan  Sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) × 1080(V)
Frequency 50 Hz (PAL) / 60 Hz (NTSC)
Horizontal  Resolution 2 Megapixel
Minimum Illumination Color : 0.01Lux @ F1.2, B&W: 0.0015 lux @ F1.4,0 Lux at IR on
Signal to Noise > 62 dB
Gain Control Auto / Manual  / Off
White Balance Auto/  Manual  / Indoor/ Outdoor
DNR Inbuilt  3D DNR (Digital Noise Reduction) circuit
Auto Iris Auto/  Manual
Gamma Correction 0.45
Sync System Internal
Lens
Lens  Type 4.7  to 155.1mm (33x Optical  Zoom)
Angle of View H 51.4°(W )   2.09°(T) ; V38.7°(W)    2.01°(T)
Focus Auto Focus/ Manual  Focus
Zoom 33x  Optical  Zoom
Zoom Speed Approx 3s (Optical Wide-Tele)
Day/Night
Functionality
Day & Night True Day & Night  with ICR
IR Cut High performance Mechanical IR Cut Filter with auto  switch
IR Source Inbuilt  high  performance High Power Array IR LEDs
IR Range Up to 150 Mtrs
IR irradiation angle Automatically adjusted, depending on the zoom ratio
IR Life 40000 operation hours
Pan-Tilt
Pan  Angle 360°  endless pan  rotation
Tilt Angle 0° to 90°  (Auto Flip)
Pan  Speed 0.01°   ~ 350°/s (Manual), 350°/s (Preset)
Tilt Speed 0.1°  ~ 120°/s (Manual), 350°/s (Preset)
Presets 220
Preset Accuracy ±0.1°
Patrol 3 Patrols, up to 16 presets per patrol
Tour Pattern 4 Tour patterns
Power-off Memory Supported
PTZ position display Supported
Operational Features
OSD Menu Supported
Camera ID On/Off
Motion Detection Supported, 8 zone  configuration
BLC Auto
Video Adjustment Supported
WDR D-WDR
Electronic Shutter Speed 1/50 ~ 1/10000s
Protocols PELCO-P, PELCO-D,  Multi protocol  support
Baud  Rate 2400/4800/9600bps
Interface
Power Input Standard DC Jack / 2Pin Wired Terminal
Data Communication RS-485
Video Output 1 BNC AHD Video Output
Electrical
Power Requirement
(± 10%)		 DC 12V (± 10%)
Power Consumption Max 30 W with IR on
Environmental
Enclosure IP 66  Weather proof  outdoor enclosure
Protection TVS 4,000V lightning protection, surge protection and  voltage transient protection
Mounting bracket External  Mounting bracket included
Operating Temperature -40°C to +65°C
Operating Humidity 95%  or less  (non-condensing)
Mechanical
Color White
Certifications
Certifications  CE, FCC, RoHS
