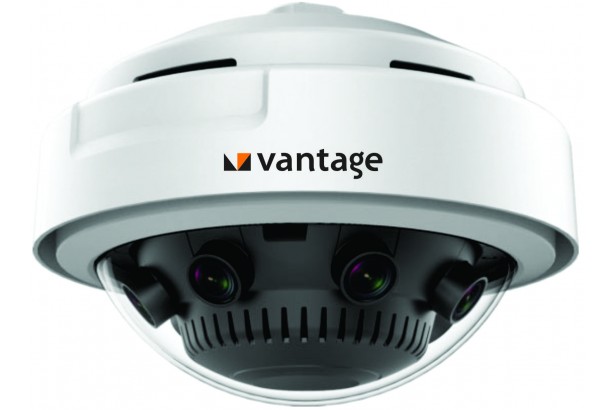

VP-NC75116PD-8AX1 360° Outdoor Camera

  • 8 x 1/1.9” Progressive Scan Sensor
  • Horizontal angle of view: 360°, Vertical angle of view: 180°
  • Inbuilt WDR, 3D DNR, BLC, HLC, Defog functions
  • 23X optical zoom, 16X digital zoom
  • Multiple ePTZ streams with preset and patrol function
  • On board storage supported by Micro SD / SDHC / SDXC
    card up to 128 GB
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/1.9″ Progressive Scan Sensor
Signal System PAL/NTSC
Minimum Illumination Color: 0.002 Lux @ (F1.8, AGC ON), B/W: 0.0002Lux @ (F1.8, AGC ON)
Gain Control  Auto
White Balance Auto (2000K to 10000K)
Signal to Noise > 62 dB
Auto Iris DC Drive
Lens
Lens Type f4.0mm/ F1.8
Angle of View Horizontal angle of view: 360°, Vertical angle of view: 180°
Focus Fixed
Compression
Video compression H.264 / MJPEG
Audio compression G.711/G.722.1/G.726/MP2L2/AAC/PCM
H.264 codec profile  Main profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps
(MP2L2) / 16-64Kbps(AAC)
Resolution and Frame Rate
Max. Resolution 2 × 2400 × 3840
Frame rate 50Hz: 2 × 2400 × 3840@ 25fps
60Hz: 2 × 2400 × 3840@ 30fps
Operational Features
Wide Dynamic Range (WDR) Supported
Backlight compensation Yes, zone configurable
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
High Light Compensation Supported
Codec streaming capability Dual
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
Security User Authentication, watermark
Alarm trigger Motion detection, Tampering alarm, Network disconnect, IP address confict, Storage full
Network & Remote Monitoring
Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,
SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System compatibility ONVIF, PSIA, CGI,ISAPI
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Onboard storage Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 128GB
Network Storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Audio Input 1xbuilt in microphone, 24dB
Audio Output  1xbuilt in Speaker
Electrical
Power Requirement (± 10%) 12 VDC ± 10% , PoE (802.3af)
Power Consumption Max. 12W
Environmental
Enclosure IP66 Outdoor Vandal Proof Dome Enclosure
Operating Temperature -30°C to + 60°C
Operating Humidity 95% or less (non-condensing)
Impact Protection IEC60068-2-75Eh, 50J; EN50102, up to Ik10
Mechanical
Color White
Dimensions 164 x 152.8 x 43.8mm
Weight 1400g
Certifications
Certifications UL, CE, FCC, RoHS
