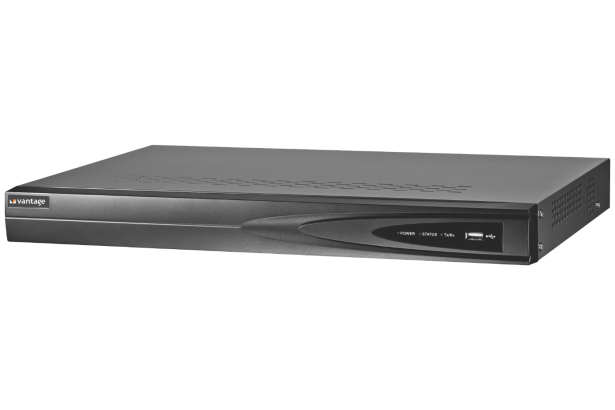

VP-NV5208-2SX1 8 Channel NVR

  • ONVIF Supported
  • Up to 5 Megapixels Resolution Display and Recording
  • HDMI and VGA output at up to 1920x1080p resolution
  • Full function CMS (Central monitoring software) supported
  •  Two way audio supported
  • Gigabit (10/100/100) Network port
  • Supports Intelligent 3D positioning for IP PTZ camera
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
Category:
Description
Parameter Specifications
System
Operating System Embedded Linux Operating System
Multiplex Operations Simultaneous multi-channel real-time recording, playback, network
operation, USB backup
User interface: Support 16-bit true color graphical menu interface and  mouse operation
Bandwidth
Incoming Bandwidth 50 Mbps
Outgoing Bandwidth 80 Mbps
Remote connections 128
Interface
IP Video Input 8-ch
Two way Audio Input 1-ch, RCA (Linear, 1kΩ)
VGA Video Output 1-ch, resolution: 1920×1080P/60Hz, 1600×1200/60Hz, 1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz
HDMI Video Output 1-ch, resolution: 1920×1080P/60Hz, 1600×1200/60Hz, 1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz
Audio Output 1-ch, RCA (Linear, 1kΩ)
Network 1 x Gigabit  (10/100/1000) ethernet port (RJ45)
USB 2 x 2.0 USB interface (for backup, firmware  upgrade and  mouse interface)
Resolution & Frame Rate
Recording Resolution 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate Main stream: 25 fps (P) / 30 fps (N); Sub  stream: 25 fps (P) / 30 fps (N)
Playback  Resolution 8 ch x D1/ 4 ch x 720p/ 2ch x 1080p
Max playback capability Max 8 ch playback
Network & Remote Monitoring
DDNS Supported; Dynamic  and  Static IP support
CMS Full function CMS ( Central  Monitoring Software)
Mobile Client
Application		 Supports android and  iOS APP for Smart phone and  tablets
Bandwidth control VBR (Automatic)  and  CBR (Manual) supported
Features
Security Password protection, user  management
Fast forward / backward
Time/Date, Alarm, Motion Detection & Exact Search (accurate to second)
Alarm Notifications FTP, Email notification supported
Recording & Storage
Recording Mode Manual/Motion Detection/Continuous/Schedule/Alarm
Storage 2 x SATA port upto  4TB Each
Overwrite Mode Supported
General
Power Supply 220V AC
Power Consumption <10W   Hard disk not included)
Operating temperature -10°C to + 55°C
Working Humidity 95%  or less  (non condensing)
Chassis Standalone 1U chassis
Dimensions 315 × 230 × 45 mm  (12.4 × 9.0  × 1.8 inch)
Weight 1 Kg ( without  hard disk)
Certifications
Certifications UL, CE, FCC
