VV-BS190FR-FPCBAH3 Dual Authentication Face Recognition + Fingerprint + RFID TA System – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

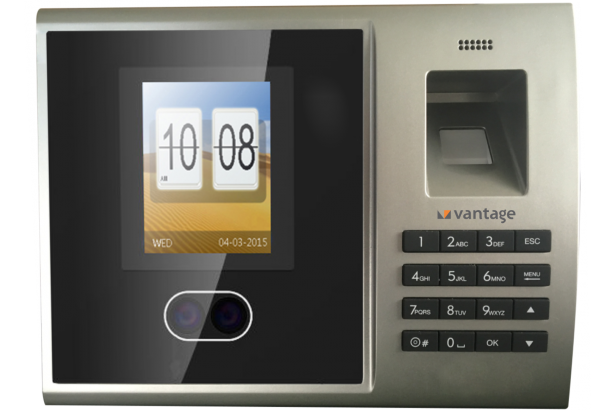

VV-BS190FR-FPCBAH3 Dual Authentication Face Recognition + Fingerprint + RFID TA System

  • Scratch Proof optical sensor
  • High performance intelligent face fecognition
  • High resolution 600 dpi optical sensing
  • Face/Fingerpring/Pin/Card authentication
  • Unparalleled image processing performance using both visual camera and IR camera
  • Intelligent adaptive/active LED illumination for inceased acurracy
  •  360° verification angle
  • High Resolution Infrared Camera
  • In-built battery for backup
  • 2.8″ color TFT screen 320 x 240 pixel
  • User friendly GUI
  • TCP-IP network connectivity
  • USB connectivity for data backup
  • High performance sensing with < 1s identification time
  • Inbuilt access control functionality
Categories: ,
Description
Parameter Specifications
Hardware & Platform
CPU 32 bit Microprocessor
Memory 64M RAM, 256M Flash
Image Sensor Special stereo dual sensor, detection range up to 80cm
Fingerprint sensor DPI rating 600 dpi resolution
Fingerprint Sensor area 16mm x 14mm
OS Embedded Linux OS
Operation mode Offline
Display 2.8″ color TFT screen 320 x 240 pixel
Keypad Alpha-numeric keypad
Indicators Audio visual indication
Operation Capacity
Face templates 300 (1:N)
Fingerprint templates 3000
Card IDs 300
Verification
FAR < 0.0001%
FRR < 1%
Verification time < 0.5s (1:N)
Algorithm Advanced Smart finger algorithm V 15.0
Verification mode 1:N
Authentication modes Fingerprint / password / Face / EM Card /  Fingerprint + password / EM Card + password/ Face +  password
Operational Features
 Backup Battery Inbuilt battery backup for upto 2 hours standby time
Voice notification Supported
Real time Clock Supported
Card Reader Inbuilt 125 Khz EM card reader
Languages Multi-language support
Card Reader Range 3-5 cms read range
Access control support Door Relay Access control function with NO-COM
Camera High Resolution Infrared Camera
Communication
Ethernet TCP/IP 10/100 ethernet interface
USB USB host, USB slave
Power
Power requirement DC 12V, 2A
Environmental
Operation temperature 0°-40°C
Operating Humidity upto 90% (non condensing)
Mechanical
Construction material ABS plastic
Dimensions 147mm * 175mm * 62mm (Length*Width*Thickness)
Weight 0.45 Kg
Certifications CE, FCC, RoHS
