VV-BS330FP-CTW3 Fingerprint Based Time Attendance System – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

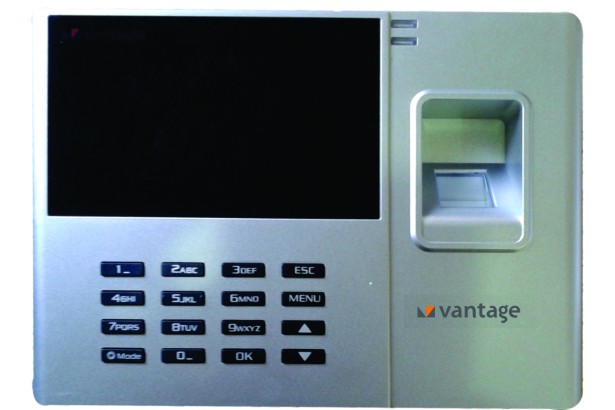

VV-BS330FP-CTW3 Fingerprint Based Time Attendance System

  • Scratch Proof optical sensor
  • High resolution 600 dpi optical sensing
  •  360° verification angle
  • 2.8″ Color LCD screen
  • TCP-IP network connectivity
  • USB connectivity for communication and data backup
  • High performance sensing with < 1s identification time
Categories: ,
Description
Parameter Specifications
Hardware & Platform
CPU 32 bit Microprocessor
Memory 64M RAM, 256M Flash
Sensor Scratch proof High performance optical sensor
DPI rating 600 dpi resolution
Sensor area 16mm x 14mm
OS Embedded Linux OS
Operation mode Offline
Display 2.8″ Color LCD screen
Keypad Alpha-numeric backlit keypad
Indicators Audio visual indication , with dual color LEDs
Operation Capacity
Fingerprint templates 1000 users
Card IDs 1000 users
Transaction capacity 100000 logs
Verification
Verification angle  360° verification angle
FAR < 0.0001%
FRR < 1%
Verification time < 1s
Algorithm Advanced Smart finger algorithm V 15.0
Verification mode 1:1; 1:N
Authentication modes Fingerprint only/ Fingerprint + PIN/ Fingerprint + EM Card
Operational Features
Voice notification Supported
Real time Clock Supported
Card Reader Inbuilt 125 Khz EM card reader (Mifare reader optional)
Languages Multi-language support
Card Reader Range 3-5 cms read range
Communication
Ethernet TCP/IP 10/100 ethernet interface
USB USB 2.0 for communication and data backup
Power
Power requirement DC 5V, 1A
Environmental
Operation temperature 0°-50°C
Operating Humidity upto 90% (non condensing)
Mechanical
Construction material ABS plastic
Dimensions 188mmx138mmx40mm
Weight 0.94kg
Certifications CE, FCC, RoHS
