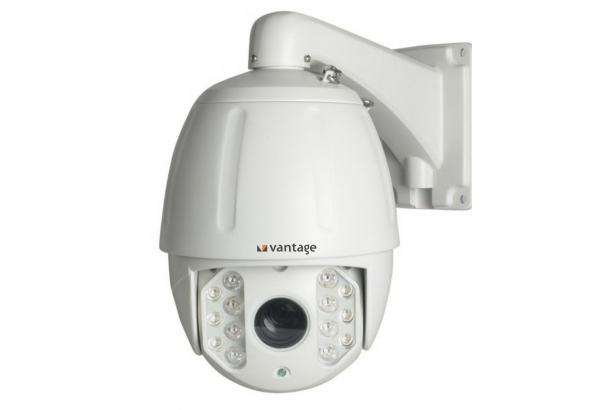

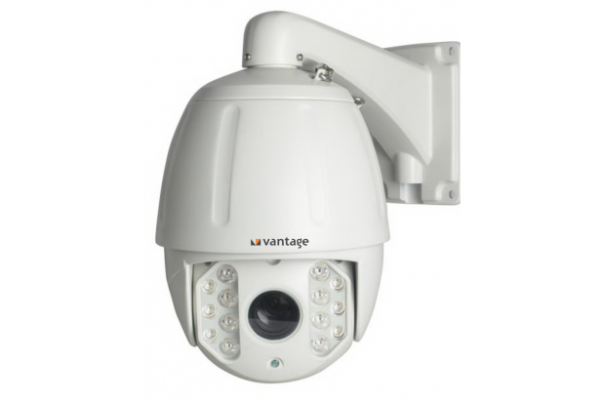

VV-NC8220P-3AIRB1 IR Night Vision High Speed PTZ Dome Camera

ParameterSpecificationsCamera  Image Sensor1/3″ Progressive Scan SensorSignal SystemPAL/NTSC Effective Pixels1920 (H) × 1080 (V)Minimum Illumination Color: 0.01Lux@( F1.4, AGC ON); B/W: 0.0015Lux@( F1.4, AGC ON); 0 Lux with IRElectronic Shutter Speed 1/1~ 1/10,000sSignal to Noise > 62 dBGain Control Auto / ManualWhite BalanceAuto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lampAuto IrisAuto / Manual  Lens Lens Type4.7 ~ 94mm, 20x OpticalAngle of View51.85  ~  2.89 degree (Wide-Tele)FocusAuto FocusZoom20x Optical ZoomZoom Speed Approx.3s (Optical Wide-Tele)Aperture Range F1.4 ~ F3.5  Compression Video compression H.264 / MJPEGH.264 codec profile Main profileVideo Bit Rate 32 Kbps ~ 16 Mbps  Resolution and Frame Rate Max. Resolution1920 x 1080Frame rate50Hz: 25 fps (1920×1080), 25 fps (1280×720);
60Hz: 30 fps (1920×1080), 30 fps (1280×720)  Day/Night Functionality Day & Night True Day & Night with ICRIR Cut High performance Mechanical IR Cut Filter with auto switchIR Source Inbuilt High performance IR LEDsIR Range Up to 120 MtrsIR Irradiation Angle Automatically adjusted, depending on the zoom ratioIR Life 40000 operation hours  Pan-Tilt Pan Angle 360° endless pan rotationTilt Angle 0° to 93° (Auto Flip)Pan Speed 0.02° ~ 480°/sTilt Speed 0.02° ~ 160°/sPresets220Preset Accuracy ± 0.1°Patrol 3 patrols, up to 16 presets per patrolTour Pattern 4 Tour patternsPower-off Memory SupportedPTZ position display Supported  Operational Features OSD MenuSupportedCamera ID On/OffPrivacy Masking Yes, Mutiple Zone SupportedDigital Zoom 16XMotion Detection SupportedBacklight Compensation SupportedVideo Adjustment SupportedWDR D-WDRProtocols PELCO-P, PELCO-D, Multi protocol supportBaud Rate 2400/4800/9600bpsDNR Inbuilt 3D DNR (Digital Noise Reduction) circuitCodec streaming capabilityDual streamingImage settingsRotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browserSecurityUser authentication, watermark, IP address filtering, anonymous access, reset  Network & Remote Monitoring Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS, DDNS,NTP,RTSP,RTP,TCP/IP ,DHCP, PPPoESystem compatibility ONVIFCMS Full function CMS ( Central monitoring software)User Access 32 users online with professional authority managementMobile Client Application Supports android and iOS APP for Smart phone and tabletsBandwidth control VBR (Automatic) and CBR (Manual) supportedNetwork storage NAS  Interface Ethernet 1 RJ45 10/100/1000 Ethernet portPower Input Standard DC Jack/ 2 Pin Wire Terminal  Electrical  Power Requirement (± 10%)12VDC,2A/ 24V AC, 2APower Consumption MAX. 22W  Environmental Enclosure IP66 weather proof outdoor enclosureMounting bracket External Mounting bracket included Operating Temperature -40°C to +65°COperating Humidity  95% or less (non-condensing)   Mechanical  Color White   Certifications Certifications CE, FCC, RoHS
