VV-NC9084S-AF0T1 CS Mount Camera (Lens not included) – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

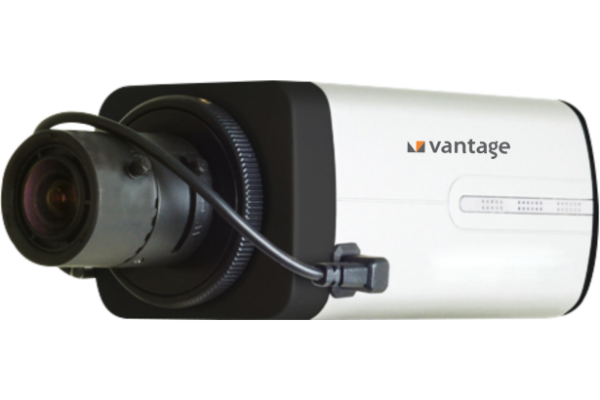

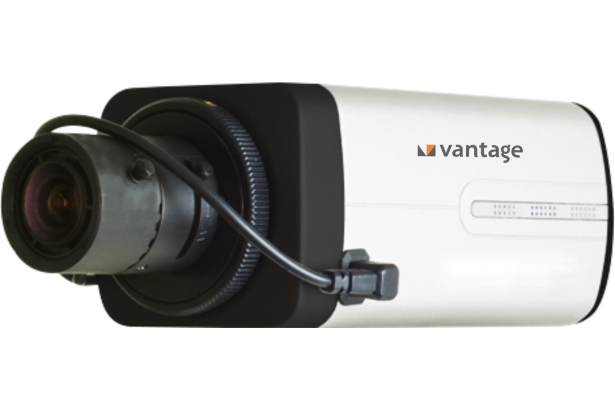

VV-NC9084S-AF0T1 CS Mount Camera (Lens not included)

  • Ultra High Definition 4MP (2688 x 1520) resolution
  • H.265 video compression technology with real time encoding
  • Dual Stream supported
  • Inbuilt SD card slot supported up to 64GB
  • ICR auto switch for day/night function
  • Onvif Supported
  • POE Supported
  • Inbuilt True 120db WDR, 3D DNR & BLC functions
  • Supports remote monitoring on Mobile Client (Android,
    IOS) and IE
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Sony Exmor Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 2592 (H) × 1944 (V)
Minimum Illumination Color : 0.01Lux @ F1.2, 0.015 lux @ F1.4
Electronic Shutter Speed 1/25s (1/30s) ~ 1/100,000s
Gain Control  Auto
White Balance  Auto
Signal to Noise > 62 dB
Auto Iris DC Drive
Lens
Lens Type C/CS-Mount Lens
Lens Mount CS-Mount
Focus Manual Adjustment
Zoom Manual Optical Zoom Adjustment
Compression
Video compression H.265 / H.264 / MJPEG
H.264 codec profile  Main profile
Video Bit Rate 64 Kbps ~ 10 Mbps
Audio compression G.711A
Audio Bit Rate 64 Kbps
Resolution and Frame Rate
Max. Resolution 2592 × 1944
Frame rate 50Hz: 25fps (2592 × 1944), 25fps (2560 x1440),25fps (1920 x 1080), 25fps (1280 x 720)
60Hz: 30fps (2592 × 1944), 30fps (2560 x1440),
30fps (1920 x 1080), 30fps (1280 x 720)
Operational Features
Wide Dynamic Range (WDR) 120dB
Backlight compensation Yes, zone configurable
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Codec streaming capability Triple streaming
Image settings Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Security User Authentication
Onboard Storage Built-in Micro SD / SDHC / SDXC card slot, up to 64 GB
Alarm trigger  motion detection, tampering alarm
Network & Remote Monitoring
Protocols TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS,SMTP, FTP
System compatibility ONVIF
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Network storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Audio Input 1 x Mic Input
Audio Output 1 x Speaker Output
Alarm Input 1
Alarm Output 1
Electrical
Power Requirement (± 10%) 12 VDC ± 10% , PoE (802.3af)
Power Consumption Max. 6W
Environmental
Enclosure Indoor Box Enclosure
Operating Temperature -10°C to + 55°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color White
Dimensions 70 × 145 × 60 mm
Weight 400g
Certifications
Certifications CE, FCC, RoHS
