VP-NC1051C-AF4IRX1 IR Night Vision Smart Fixed Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

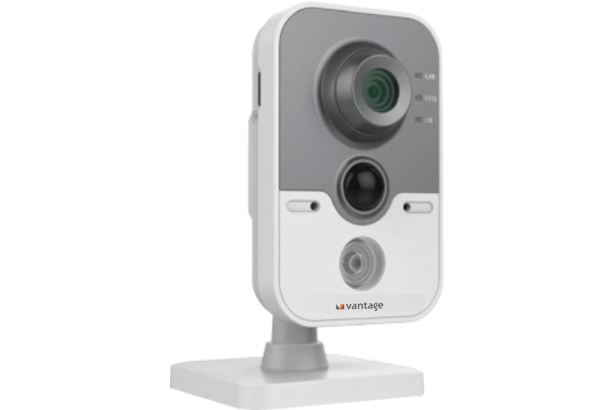

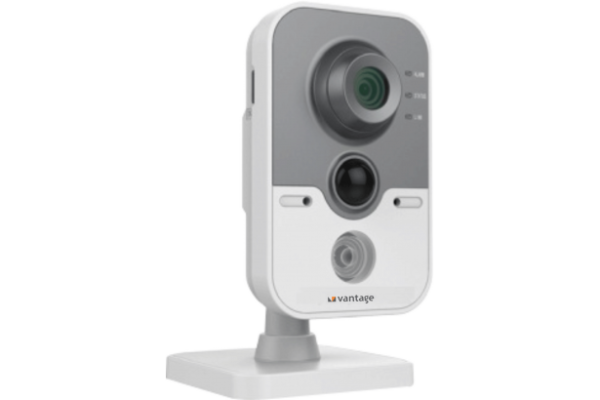

VP-NC1051C-AF4IRX1 IR Night Vision Smart Fixed Camera

  • High Definition 1MP (1280 x 720) resolution
  • Onboard SD card slot up to 64GB support
  • Inbuilt DWDR, 3D DNR & BLC functions
  • Inbuilt Smart analytics for Virtual Line detection, Virtual Plane Intrusion detection
  • Inbuilt internal microphone and speaker
  • Dual stream supported
  • IR night vision range up to 15 mtr
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/4″ Sony Exmor Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1280 (H) × 720 (V)
Minimum Illumination Color : 0.01Lux @ F1.2, 0.015 lux @ F1.4, B&W: 0 Lux at IR on
Electronic Shutter Speed 1/25s (1/30s) ~ 1/100,000s
Gain Control  Auto
White Balance Auto (2000K to 10000K)
Signal to Noise > 62 dB
Auto Iris DC Drive
Lens
Lens Type 3 Megapixel IR corrected 4mm Fixed Lens
Lens Mount M12
Focus Fixed
Day/Night Functionality
Day & Night True Day & Night with ICR
IR Cut High performance Mechanical IR Cut Filter with auto switch
IR Source Inbuilt Smart IR LEDs with intensity control
IR Range 15 Mtr
IR Life 40000 Operation Hours
Compression
Video compression  H.264 / MJPEG
H.264 codec profile  Main profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Audio compression G.711 / G.726 / MP2L2
Audio Bit Rate 64 Kbps (G.711) / 16 Kbps (G.726) / 32-128 Kbps (MP2L2)
Resolution and Frame Rate
Max. Resolution 1280x 720
Frame rate 50Hz: 25fps(1280 × 720), 25fps (704 × 576), 25fps (640 × 480)
60Hz: 30fps(1280 × 720), 30fps (704 × 576), 30fps (640 × 480)
Operational Features
Wide Dynamic Range (WDR) Digital WDR
Backlight compensation Yes, zone configurable
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Codec streaming capability Dual streaming
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
ROI ( Region of Interest) Yes, zone configurable upto 4 areas
Security User Authentication, watermark, reset button
Onboard Storage Built-in Micro SD / SDHC / SDXC card slot, up to 128 GB
Alarm trigger  motion detection, tampering alarm
PIR Angle: 85°
Range: 10m
Network & Remote Monitoring
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility ONVIF, PSIA, CGI,ISAPI
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Network storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Alarm Input 1
Alarm Output 1
Electrical
Power Requirement (± 10%) 12V DC ± 10% , PoE (802.3af)
Power Consumption max. 5W
Environmental
Enclosure Indoor Cube Enclosure
Mounting bracket External mounting bracket Included
Operating Temperature -10°C to + 55°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color White & Gray
Dimensions 66×91.5×131.3mm(2.60”×3.60” ×5.17”)
Weight 400g
Certifications
Certifications UL, CE, FCC, RoHS
