VP-NC7181H-ASPHWDX1 L- Shaped Sensor Special Application Camera – VodaSecure

Deprecated: Function create_function() is deprecated in /home/vodasecure/public_html/wp-content/themes/betheme/header-shop.php on line 103

Vantage Products

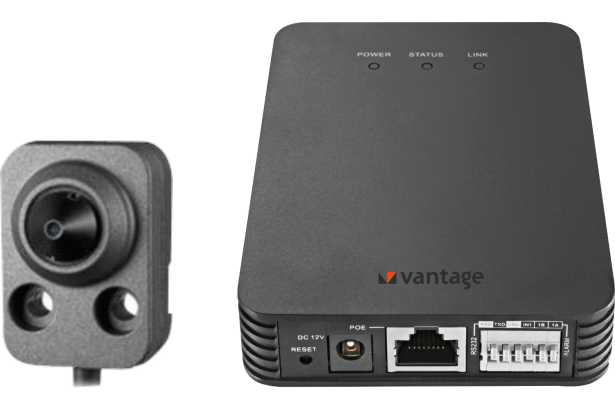

VP-NC7181H-ASPHWDX1 L- Shaped Sensor Special Application Camera

  • High Definition 1.3MP (1280 x 960) resolution
  • Triple-Stream (H.264/MJPEG/MPEG4) supported
  • True 120DB WDR supported
  • Inbuilt 3D DNR & BLC functions
  • ONVIF Supported
  • Advanced Intelligent function like ROI(Region of interest), Face
    detection Supported
  • High Light compensation Supported
  • Onboard Storage SD Card up to 64GB Supported
Category:
Description
Parameter Specifications
Camera
Image Sensor 1/3″ Sony Exmor Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1280 (H) × 960 (V)
Minimum Illumination Color : 0.01Lux @ F1.2, 0.0015 lux @ F1.4
Electronic Shutter Speed 1s ~ 1/100,000s
Gain Control  Auto
White Balance Auto (2000K to 10000K)
Signal to Noise > 62 dB
Auto Iris DC Drive
Lens
Lens Type 2 Megapixel Pinhole Lens 3.7mm
Lens Mount M12
Focus Fixed
Compression
Video compression H.264 / MJPEG / MPEG4
H.264 codec profile  Main profile
Video Bit Rate 32 Kbps ~ 16 Mbps
Resolution and Frame Rate
Max. Resolution 1280 × 960
Frame rate 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x576), 25 fps (640 x 480),
60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
Third Stream 50Hz: 25fps (1280 x 960), 60Hz: 30fps (1280 x 960)
Operational Features
Wide Dynamic Range (WDR) 120DB WDR
Backlight compensation Yes, zone configurable
High Light Compensation Supported
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Face Detection Supported
Picture overlay 128 x 128, BMP 24bit, zone configurable
Codec streaming capability Triple streaming
Image settings Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
ROI ( Region of Interest) Yes, zone configurable upto 4 areas
Security User Authentication, watermark, reset button
Onboard Storage Built-in Micro SD / SDHC / SDXC card slot, up to 64 GB
Alarm trigger  motion detection, tampering alarm
Network & Remote Monitoring
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility ONVIF, PSIA, CGI,ISAPI
CMS  Full function CMS ( Central monitoring software)
Mobile Client Application  Supports android and iOS APP for Smart phone and tablets
Bandwidth control VBR (Automatic) and CBR (Manual) supported
Network storage NAS
Interface
Ethernet 1 RJ45 10/100/1000 Ethernet port
Power Input Standard DC Jack
Audio Input / Output 1/1
Alarm Input / Output 1/1
Electrical
Power Requirement (± 10%) 12V DC ± 10% , PoE (802.3af)
Power Consumption Max. 6.5W
Environmental
Operating Temperature -30°C to + 60°C
Operating Humidity 95% or less (non-condensing)
Mechanical
Color Black
Dimensions 78 × 105 × 32 mm
Weight 450g
Certifications
Certifications UL, CE, FCC, RoHS
